Exhaust Gas Temperature Sensor 1/4 - 2.0L: Installation

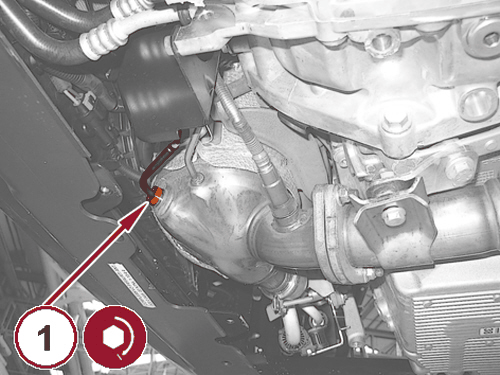

GC0164720Courtesy of CHRYSLER GROUP, LLC
  1. Install the Exhaust Gas Temperature (EGT) sensor 1/4, engage the wiring in the retainer clips and then tighten the sensor to the proper (Torque Specification).
  2. Connect the EGT sensor 1/4 wire harness connector.
  3. Connect and upstream oxygen sensor wire harness connector.
  4. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  5. Install the battery tray. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
  6. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
