Cooling System: Engine: Thermostat: Installation: 6.2L

Courtesy of CHRYSLER GROUP, LLC

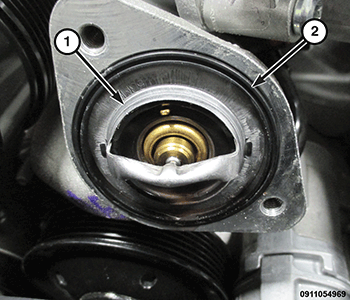

1. Position the thermostat (1) with the vent at the 12 o'clock position and the gasket seal (2) is fully seated.

   Courtesy of CHRYSLER GROUP, LLC

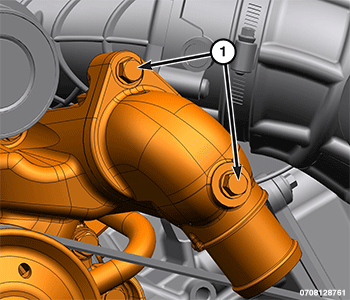

2. Install the thermostat housing. Tighten the bolts (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

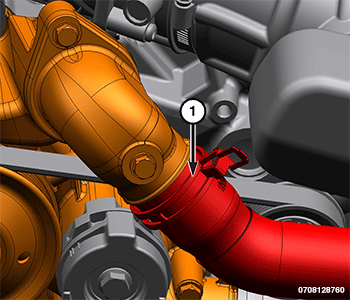

3. Install the radiator hose (1) onto the thermostat housing.
4. Fill the cooling system. Refer to STANDARD PROCEDURE .
5. Start and warm the engine. Check for leaks. Refer to DIAGNOSIS AND TESTING .
