B197F-13 Power Liftgate Latch Control 1-Circuit Open: Notes

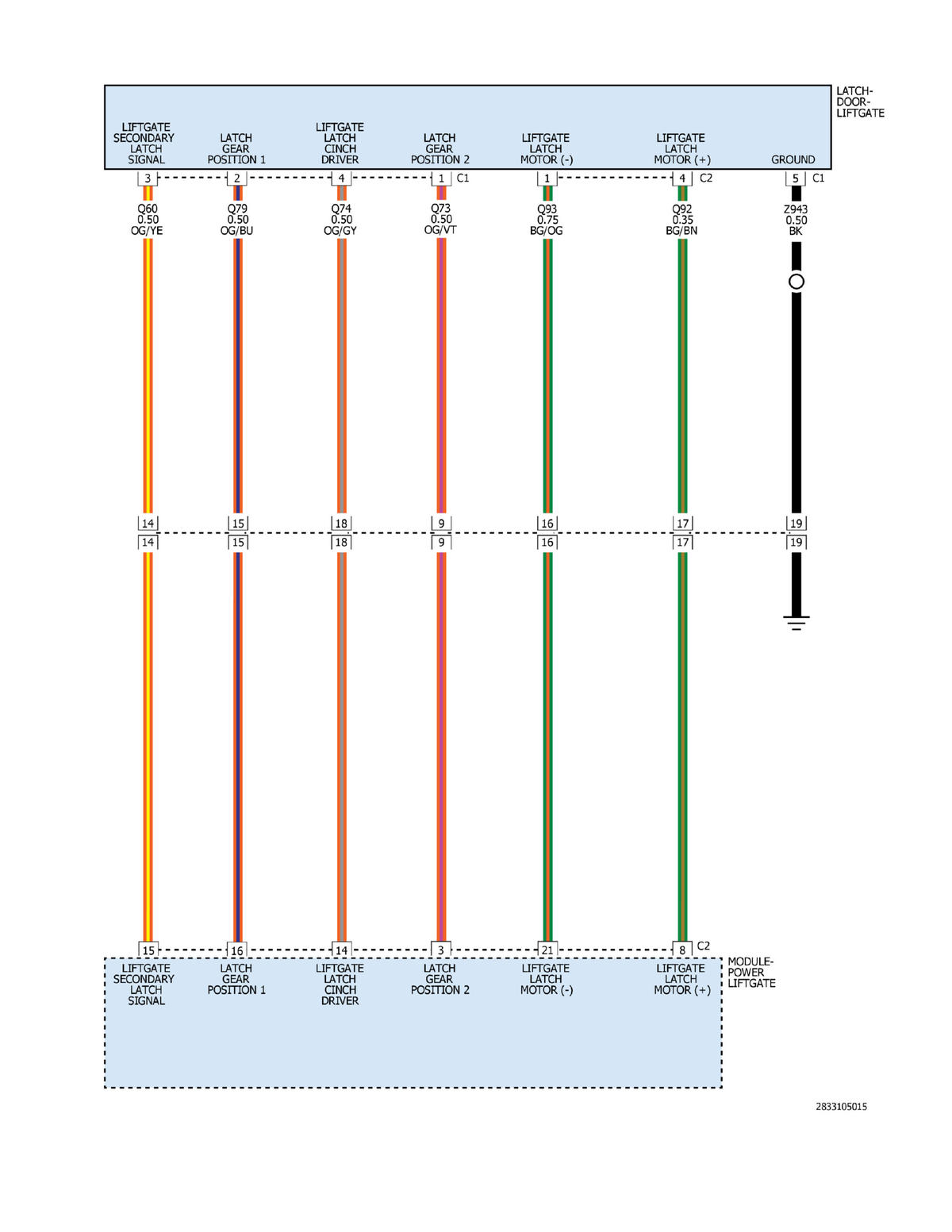

GC0188639

Courtesy of CHRYSLER GROUP, LLC
