Microphone Installation

WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

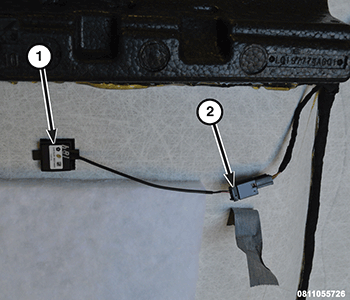

GC0172157Courtesy of CHRYSLER GROUP, LLC
  1. Install the microphone (1) into the headliner.
  2. Connect the wire harness connector (2) to the microphone.
  3. Install the headliner. Refer to HEADLINER, INSTALLATION .
  4. Connect the negative battery cable.
