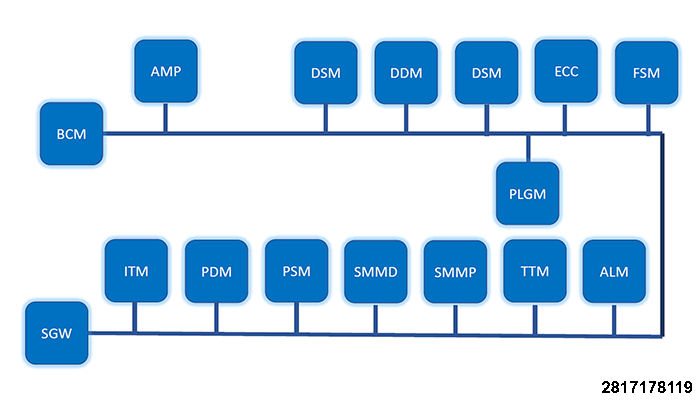

CAN-INTERIOR HIGH SPEED (CAN-IHS)
| CAN | CIRCUIT ID | CIRCUIT DESCRIPTION | DOMINANT MODULES | NON-DOMINANT MODULES | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IHS | D368 | CAN IHS (+) | Body Control Module (BCM) | Security Gateway Module (SGW) | Amplifier (AMP) | Power LiftGate Module (PLGM) | Display Screen Module (DSM) | Driver Door Module (DDM) | Driver Seat Module (DSM) | Electronic Climate Control (ECC) | Folding Seat Module (FSM) | Integrated Center Stack (ICS) |
| D367 | CAN IHS (-) | Network Manager | Intrusion Module [BUX Only] | Passenger Door Module (PDM) | Passenger Seat Module (PSM) | Seat Massage Module Driver (SMMD) | Seat Massage Module Passenger (SMMP) | Trailer Tow Module (TTM) | Ambient Light Module (ALM) | Rear Cabin Confort Controls (RCCC) | ||
For a complete CAN BH / IHS BUS SYSTEM wiring diagram, refer to the appropriate system wiring diagram .
