Electronic Limited Slip Differential Module
DESCRIPTION

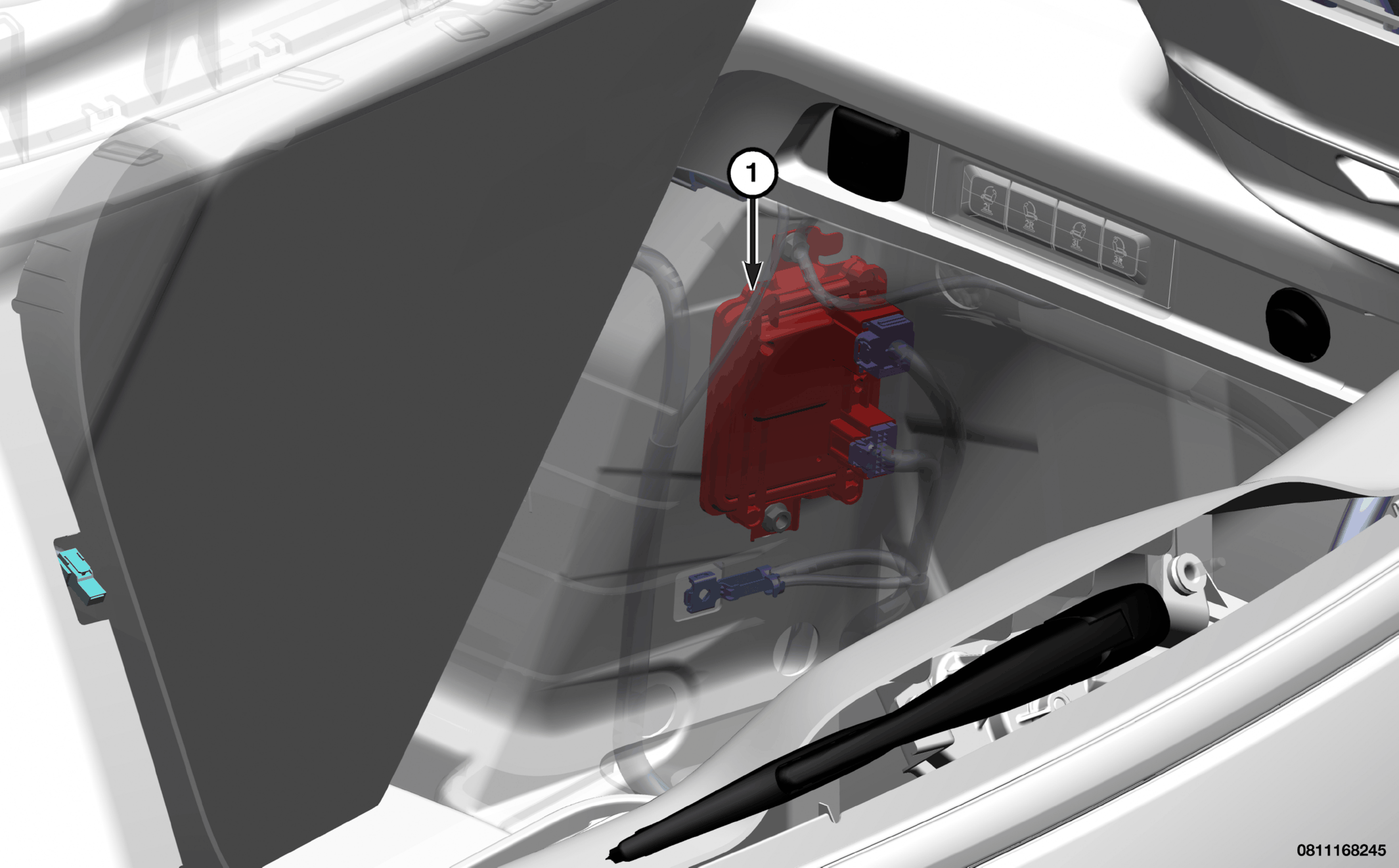

The Electronic Limited Slip Differential (ELSD) Module (1) is installed inside the rear compartment behind the right rear quarter trim panel assembly.
OPERATION
The ELSD module manages the left and right wheel drive torque distribution to control the vehicle dynamics as per a Drivetrain Control Module (DTCM) command. The ELSD can send 0 to 100% torque from the wheel that is slipping to the other wheel, on the rear axle. The transfer case controls slip from front to rear. The ELSD controls slip from left to right within the rear differential.

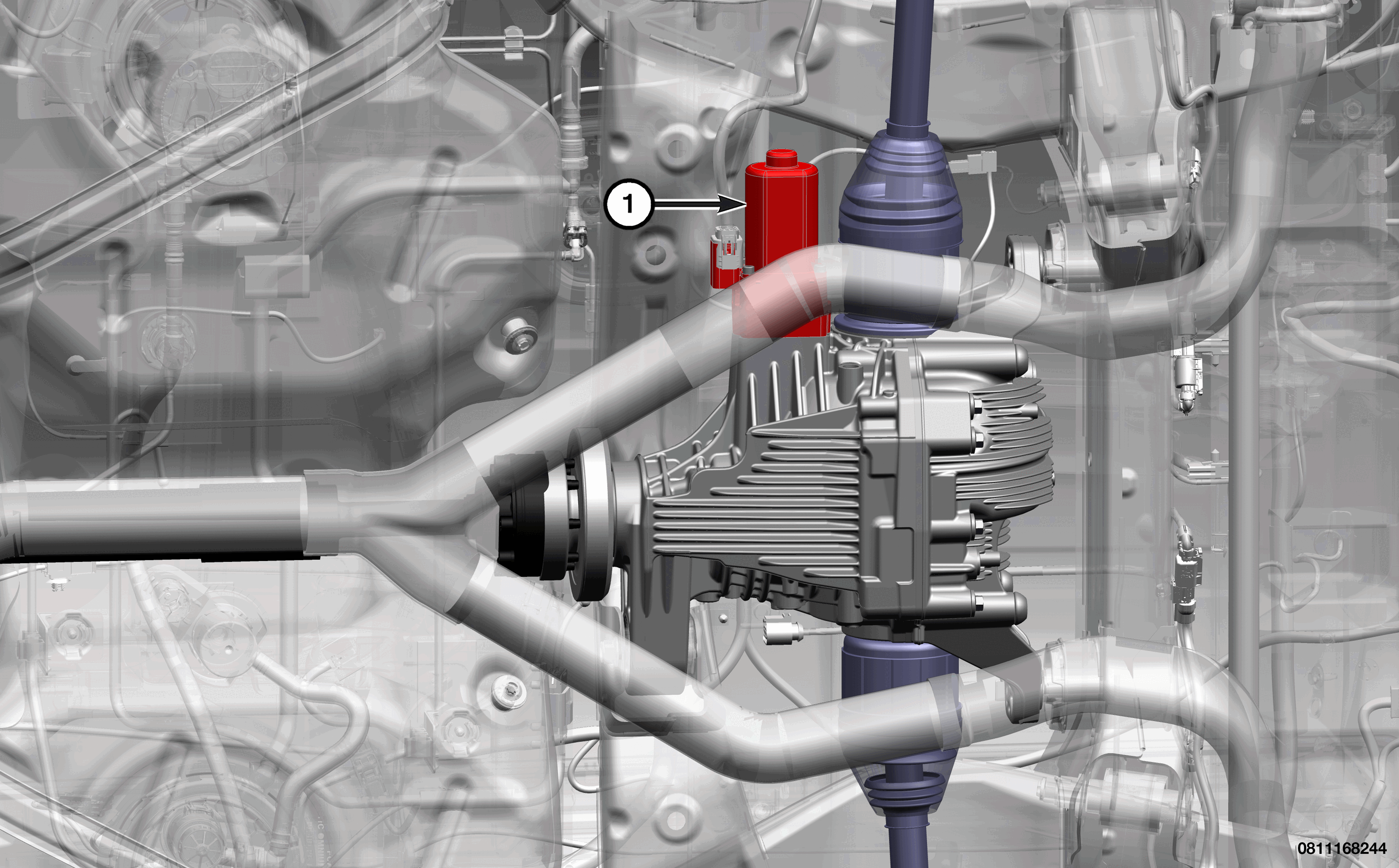

The ELSD controls an electric motor (1) which drives a gear set which moves a ball ramp to apply force to a wet clutch. This clutch is used to control torque split. Motor position feedback is done with two hall effect sensors on the motor. There is also a temperature sensor on the motor. ELSD will be temporarily disabled with high temperatures on the motor. Communication is via the Controller Area Network-Flexible Data (CAN-FD) bus. To service the electric motor. Refer to MOTOR, ELECTRONIC LIMITED SLIP DIFFERENTIAL, REMOVAL AND INSTALLATION .
