Heating Ventilation And Air Conditioning (HVAC) Module

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

WARNING:

Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE:

The Heating, Ventilation and Air Conditioning (HVAC) module is shown removed from the vehicle for clarity.

Remove the right instrument panel silencer panel. Refer to PANEL, SILENCER, REMOVAL AND INSTALLATION .

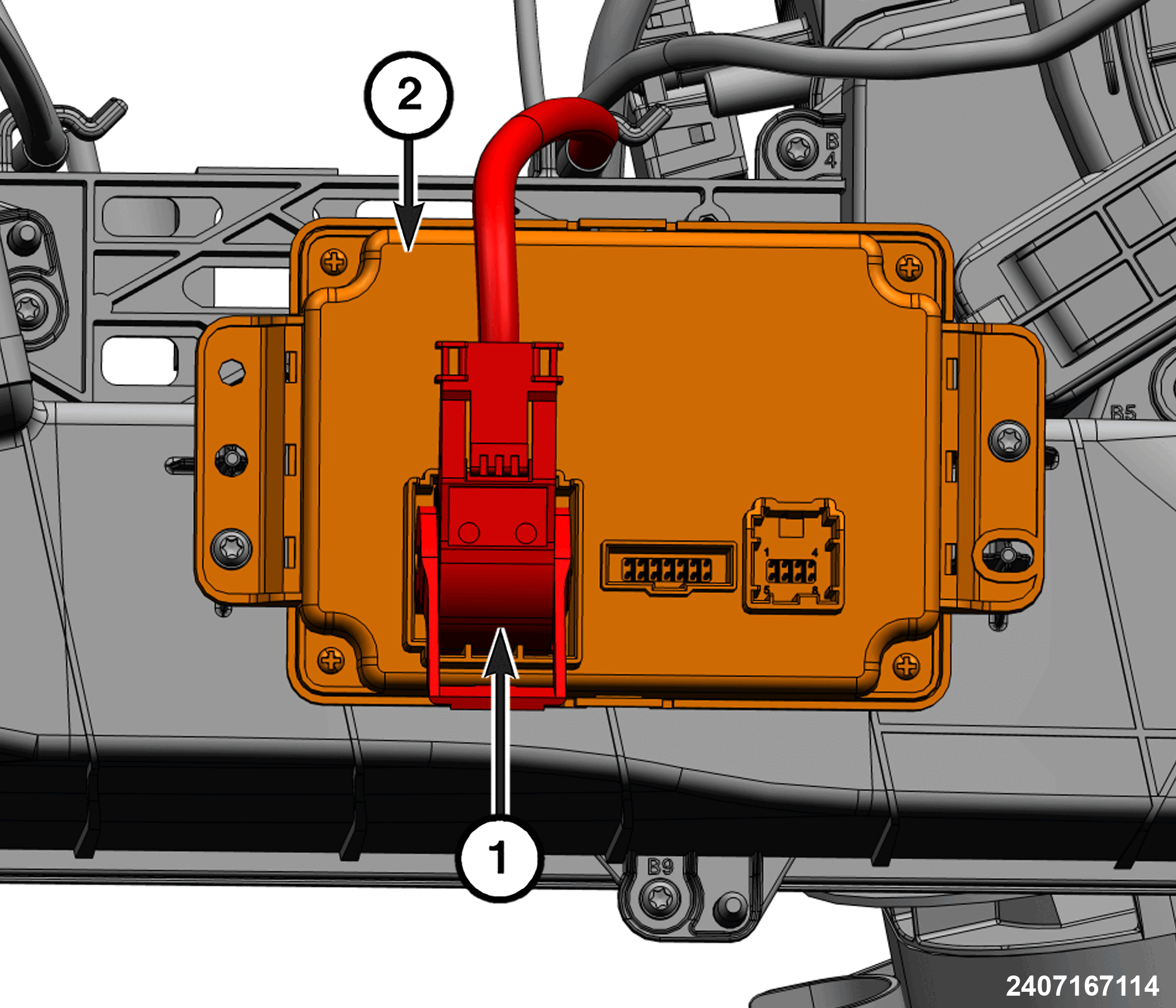

Courtesy of CHRYSLER GROUP, LLC

1 - Wire Harness Connector

2 - Heating Ventilation and Air Conditioning (HVAC) Module

Disconnect the wire harness connector from the HVAC module.

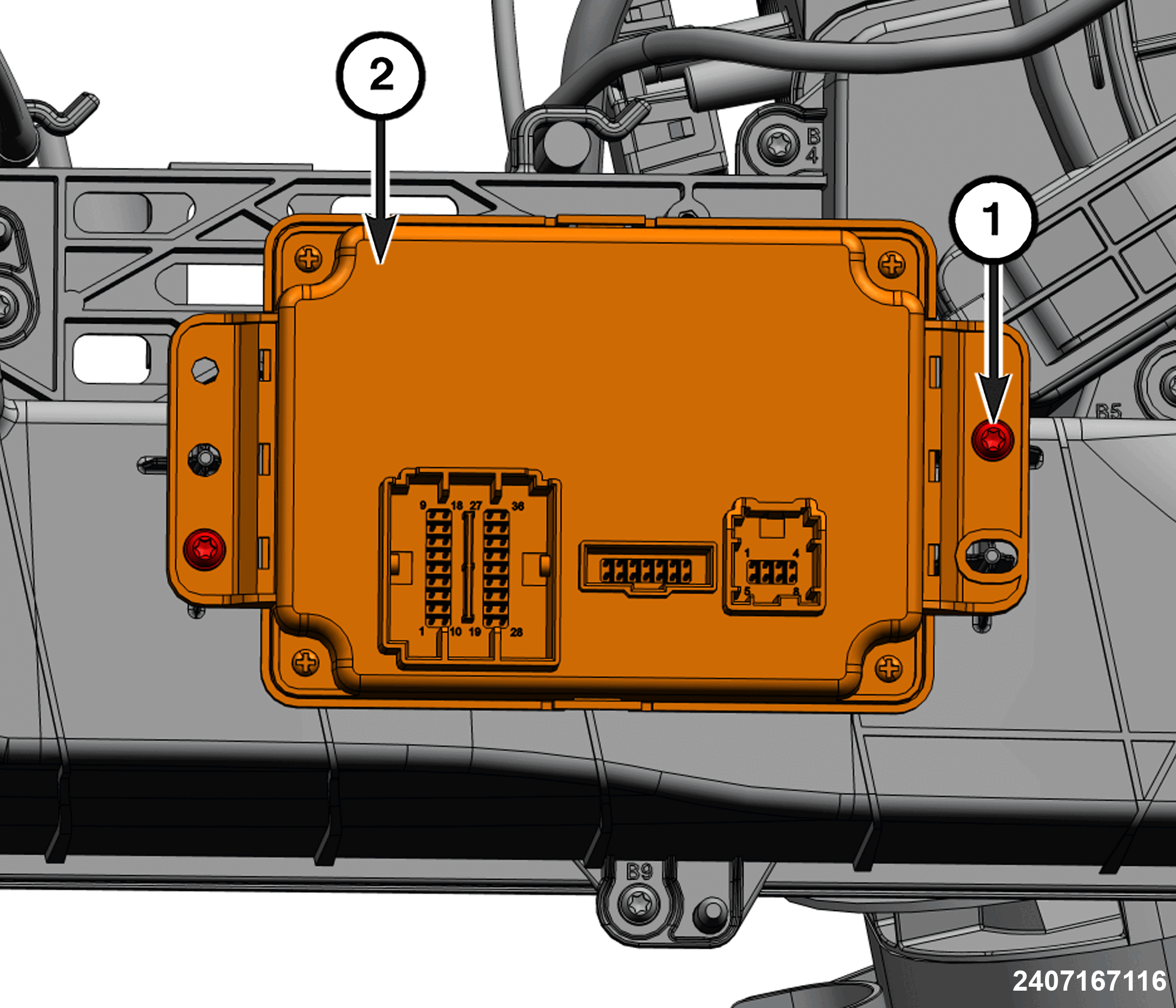

Courtesy of CHRYSLER GROUP, LLC

1 - Fasteners

2 - Heating Ventilation and Air Conditioning (HVAC) Module
Remove the fasteners that secure the HVAC module to the HVAC housing.
Remove the HVAC module.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

Tighten the fasteners securely.
Using the diagnostic scan tool, the "Restore Vehicle Configuration" routine under the Body Control Modules (BCM) "Misc Functions" menu must be performed.
Initiate the Actuator Calibration function using a scan tool. Refer to STANDARD PROCEDURE .
