Instrument Panel Cluster (IPC)

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Lower the steering column and steering wheel to its lowest position.
Remove the instrument cluster bezel. Refer to BEZEL, INSTRUMENT CLUSTER, REMOVAL AND INSTALLATION .
Remove the gap hider. Refer to GAP HIDER, STEERING COLUMN SHROUD, REMOVAL AND INSTALLATION .

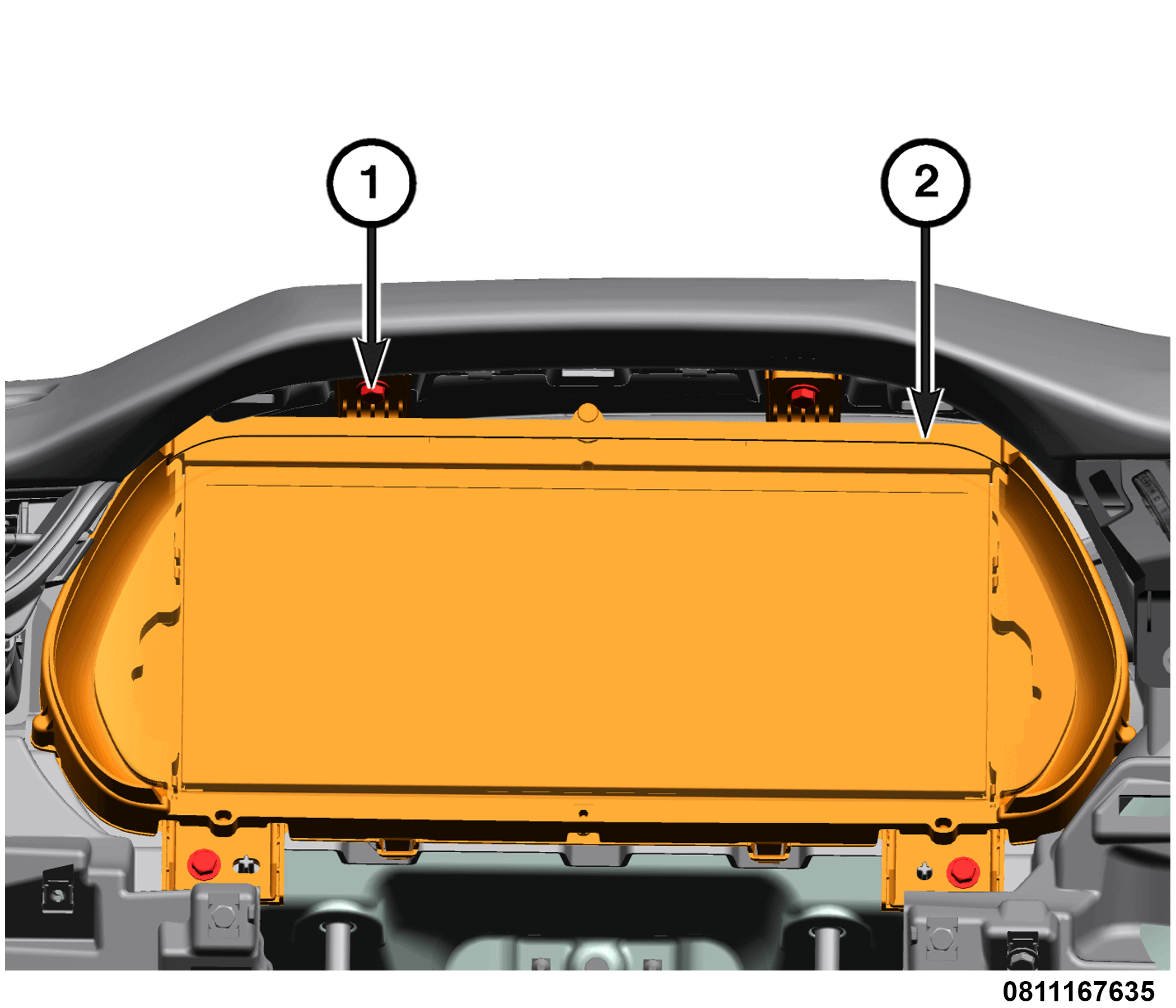

Courtesy of CHRYSLER GROUP, LLC

1 - Fasteners

2 - Instrument Panel Cluster (IPC)
Remove the fasteners that secure the Instrument Panel Cluster (IPC) to the instrument panel.

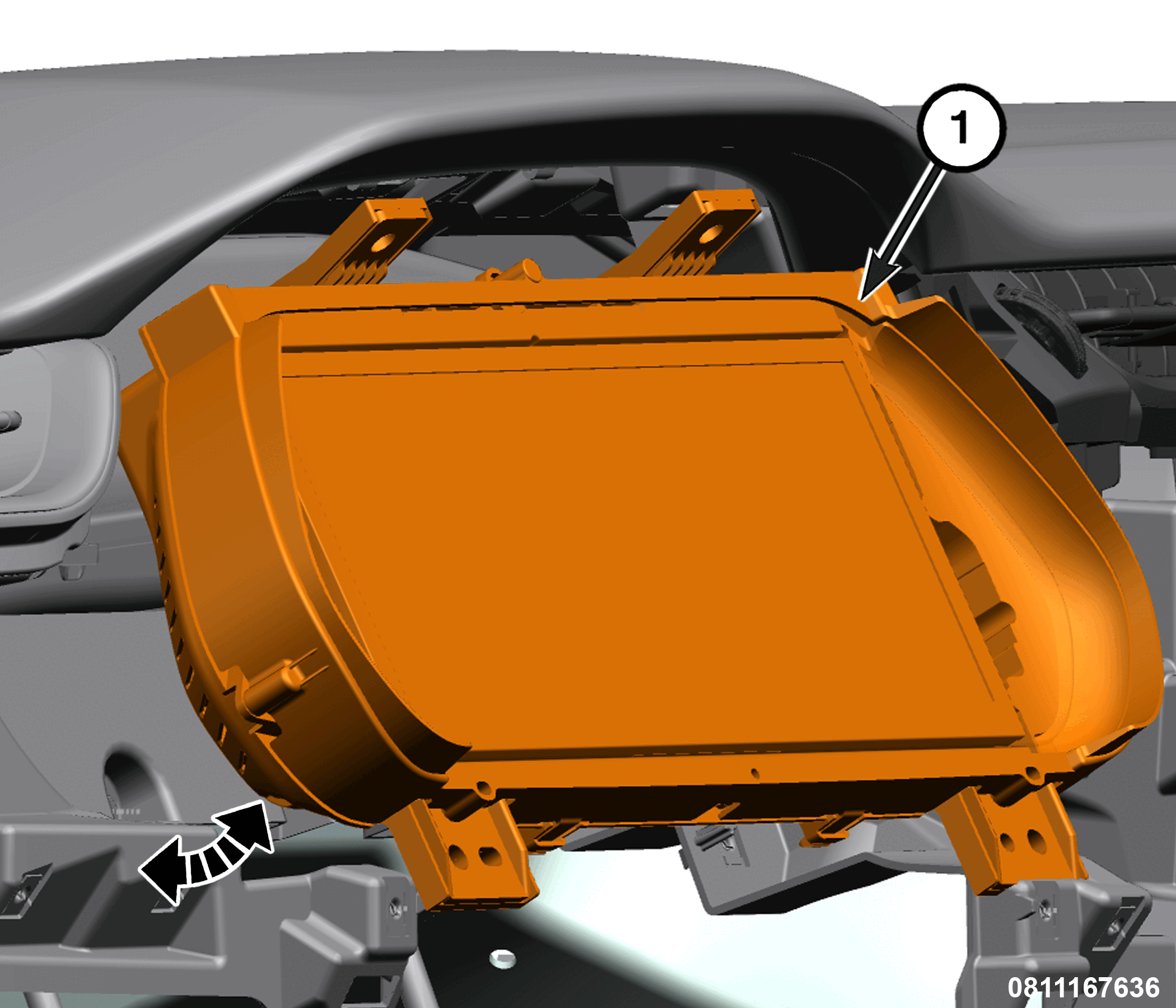

Courtesy of CHRYSLER GROUP, LLC

1 - Instrument Panel Cluster (IPC)
Pull the bottom of the IPC rearward far enough to access the back of the IPC.

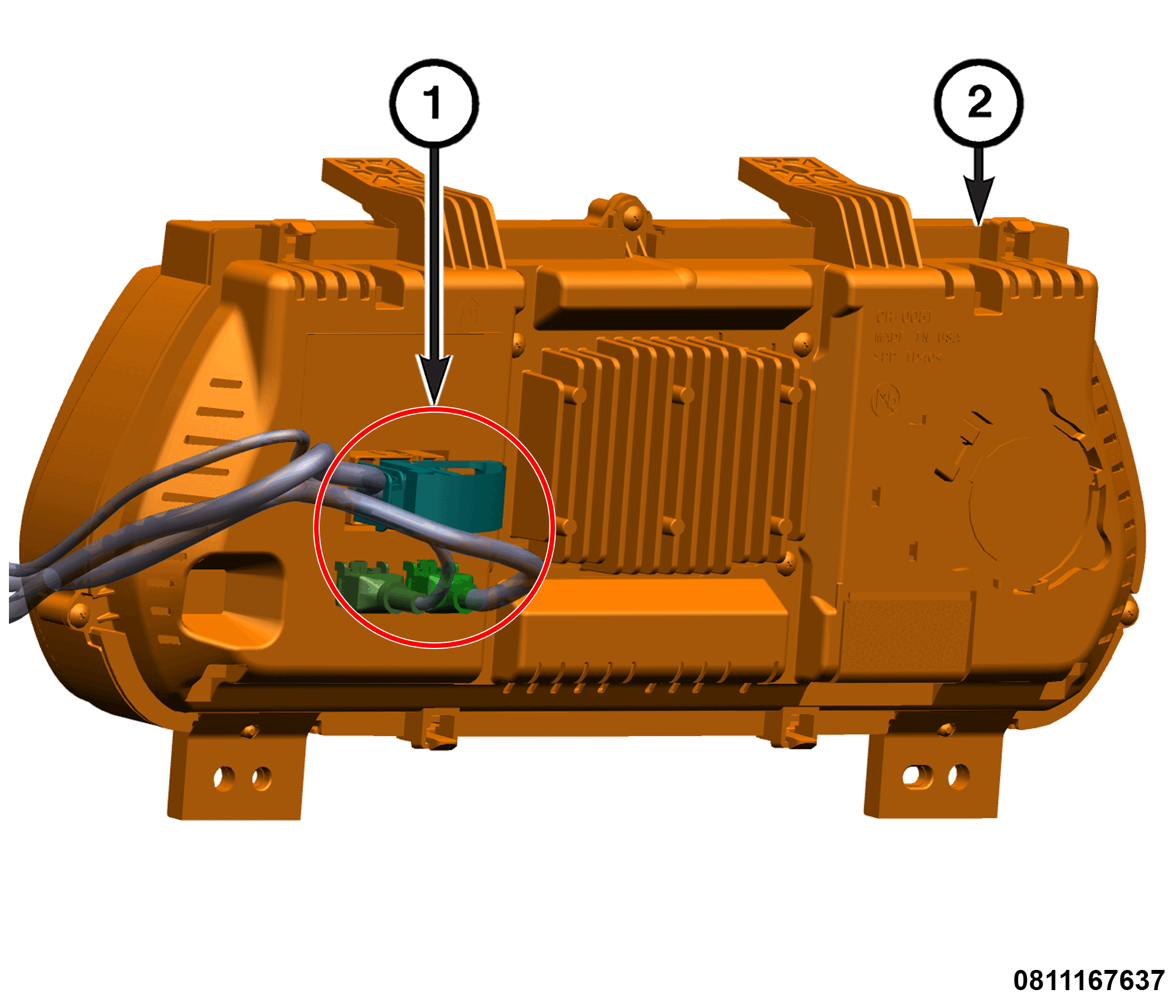

Courtesy of CHRYSLER GROUP, LLC

1 - Wire Harness Connectors

2 - Instrument Panel Cluster (IPC)
Disconnect the IPC wire harness connector(s). Remove the IPC from the vehicle.

INSTALLATION

Position the IPC close enough to the instrument panel and connect the IPC wire harness connectors.
Position the IPC for installation. Install the fasteners and tighten securely.
Install the gap hider. Refer to GAP HIDER, STEERING COLUMN SHROUD, REMOVAL AND INSTALLATION .
Install the instrument cluster bezel. Refer to BEZEL, INSTRUMENT CLUSTER, REMOVAL AND INSTALLATION .
