Integrated Center Stack (Ics)
WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.
REMOVAL
- Remove the instrument panel center bezel. Refer to
BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL AND INSTALLATION
.

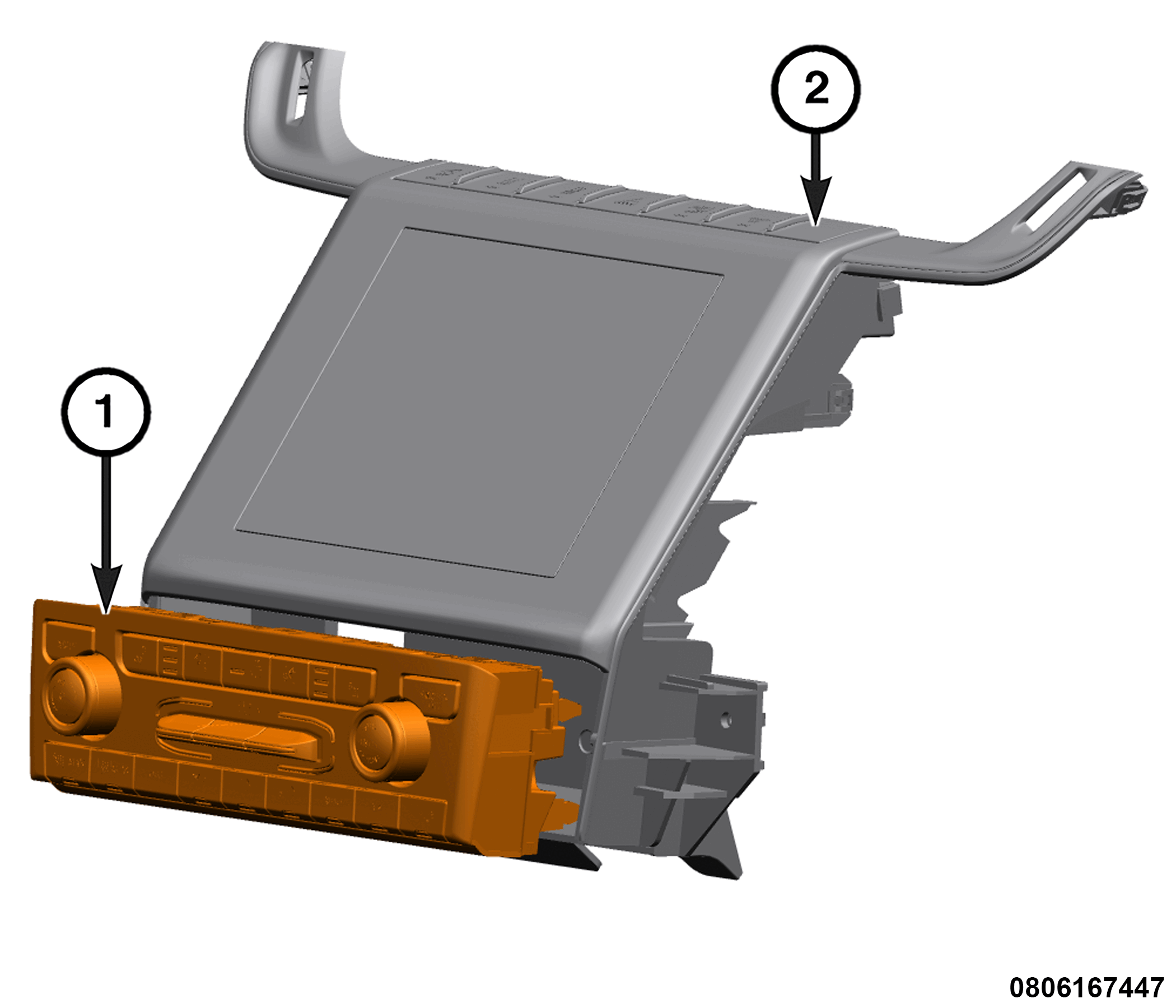

1 - Integrated Center Stack (ICS) 2 - Bezel - Working from the backside of the instrument panel center bezel (2), compress the retaining clips on the Integrated Center Stack (ICS) (1).
- Carefully push on the rear of the ICS, and remove the ICS from the bezel.
INSTALLATION
- Position the ICS into the instrument panel center bezel. Press together firmly to fully seat retaining clips.
- Install the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL AND INSTALLATION .
