Radio Frequency Hub (RFH)

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Remove the rear header panel and lower the headliner to access the Radio Frequency Hub (RFH) located at the center rear. Refer to PANEL, HEADER, REAR, REMOVAL AND INSTALLATION .
Disconnect all of the wire harness connectors at the RF-Hub.

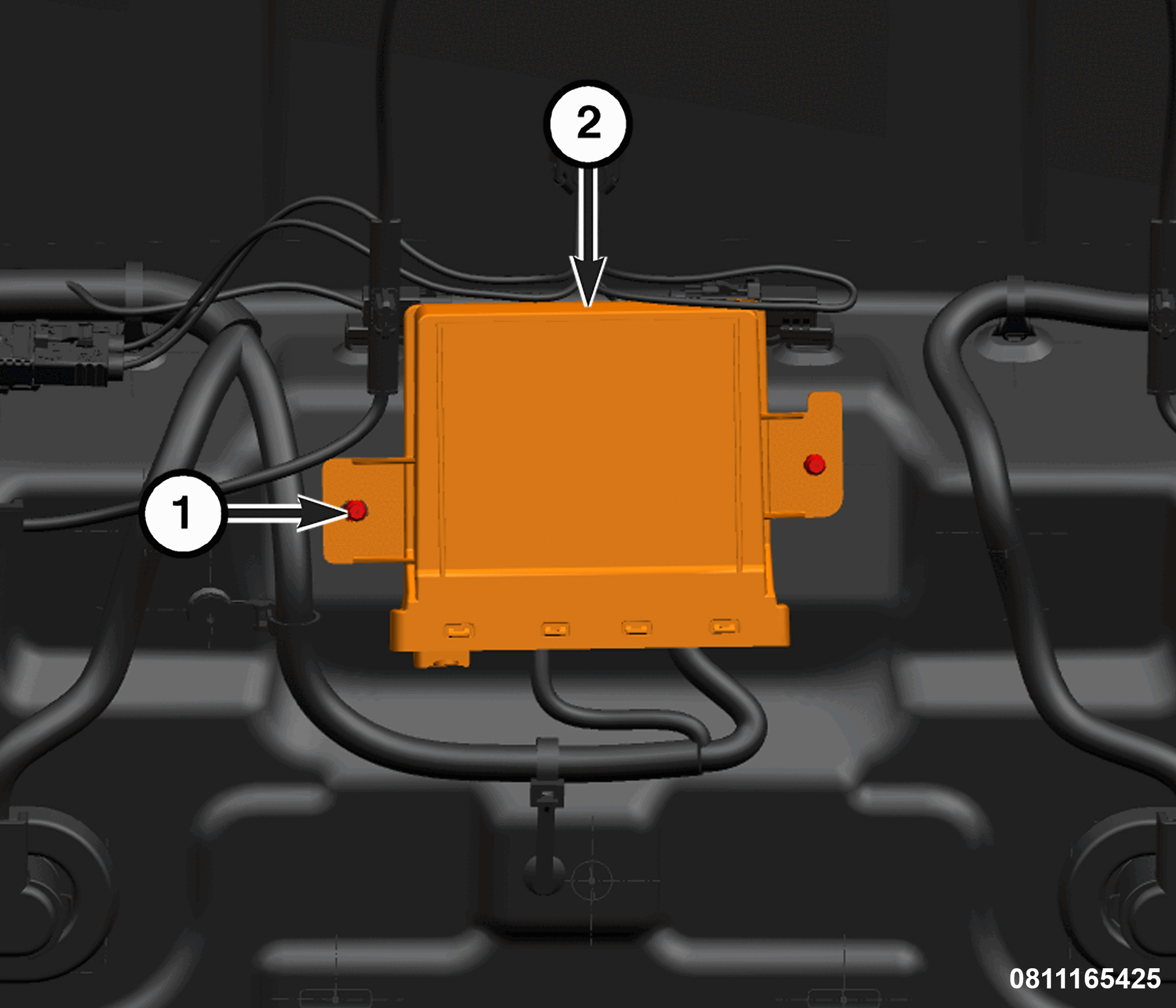

Courtesy of CHRYSLER GROUP, LLC

1 - Retainers

2 - Radio Frequency Hub (RFH)
Remove the retainers and remove the RFH from the vehicle.

INSTALLATION

NOTE:

Replace and Program the module(s) per the RFH, BCM, PCM FOBIK and ELV Replacement and Programming Order Guide. Refer to IMMOBILIZER MODULES REPLACEMENT .

Position the RFH to the vehicle and install the retainers.
If equipped, connect the remote start antenna connector.
Connect the wire harness connectors.
Install the rear header panel. Refer to PANEL, HEADER, REAR, REMOVAL AND INSTALLATION .

NOTE:

Program the RFH. Refer to MODULE, RADIO FREQUENCY (RF HUB), MODULE PROGRAMMING .
