Trailer Tow Module (TTM)

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Remove the cargo load floor. Refer to LOAD FLOOR, CARGO, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

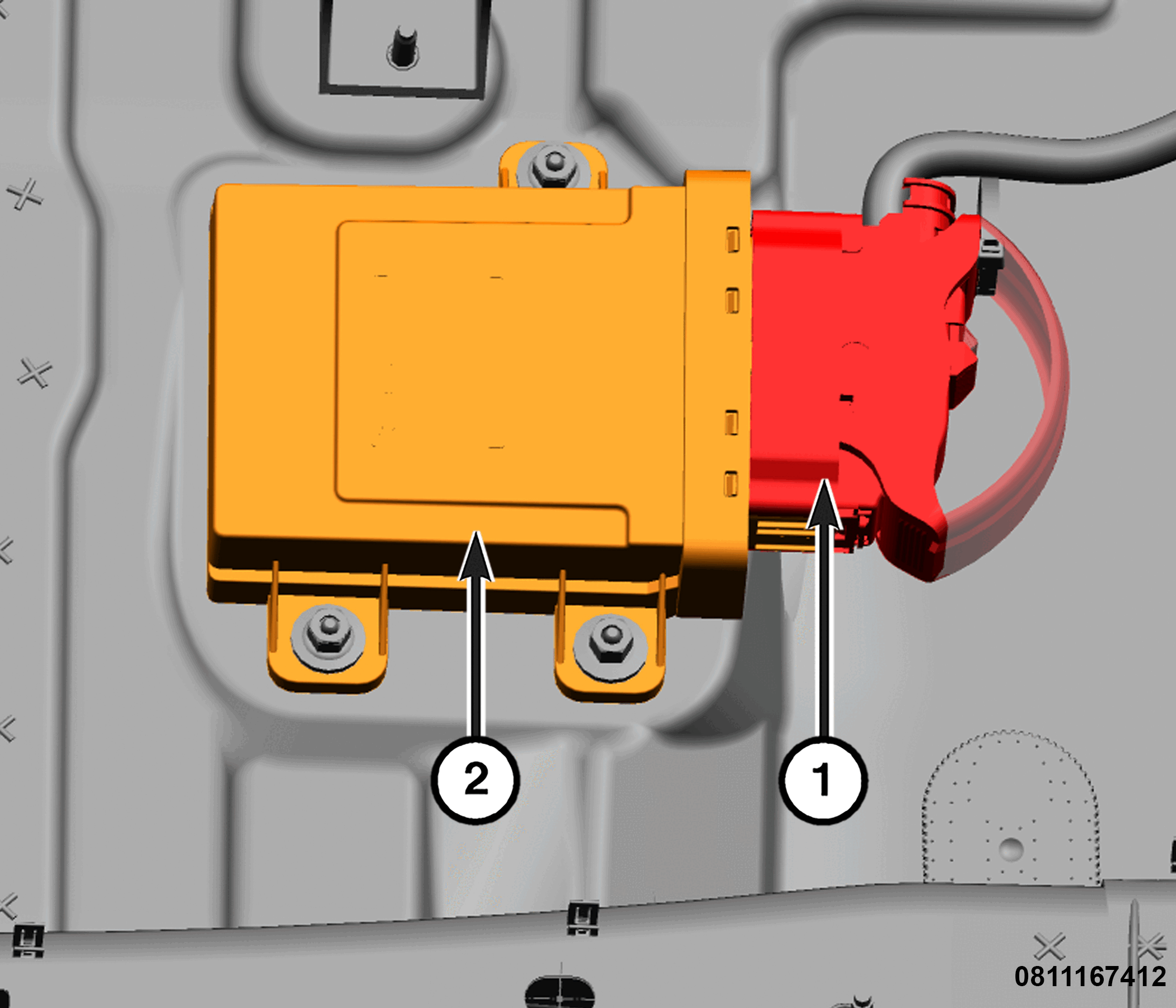

1 - Wire Harness Connector

2 - Trailer Tow Module (TTM)
Disconnect the wire harness connector from the Trailer Tow Module (TTM).

Courtesy of CHRYSLER GROUP, LLC

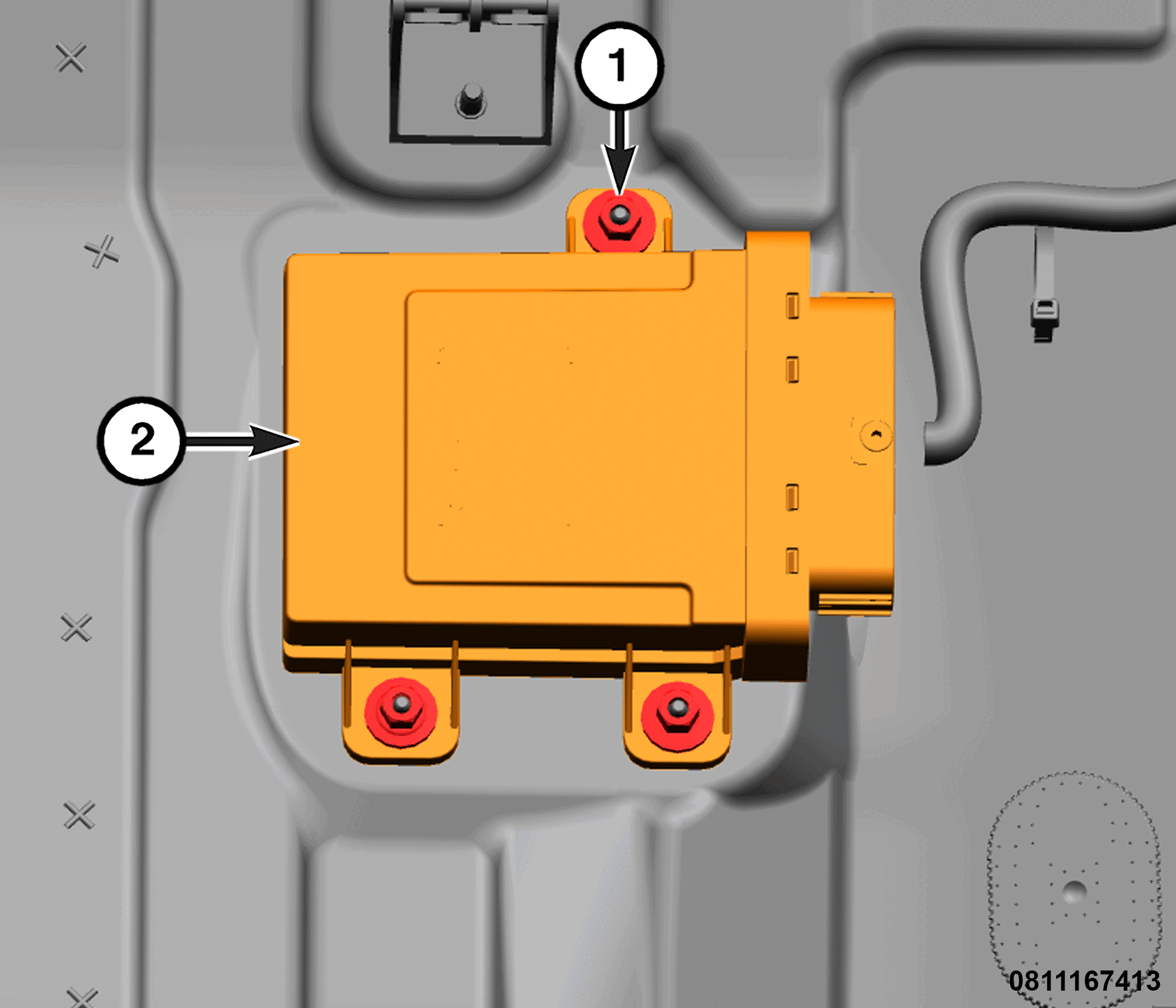

1 - TTM Nuts

2 - TTM
Remove the TTM nuts and remove the TTM.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1 - TTM Nuts

2 - TTM

Position the TTM to the vehicle.
Install the TTM nuts and tighten securely.

Courtesy of CHRYSLER GROUP, LLC

1 - Wire Harness Connector

2 - TTM
Connect the wire harness connector to the TTM.
Install the cargo load floor. Refer to LOAD FLOOR, CARGO, REMOVAL AND INSTALLATION .
