Module, Active Noise Cancellation (ANC): Description

WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

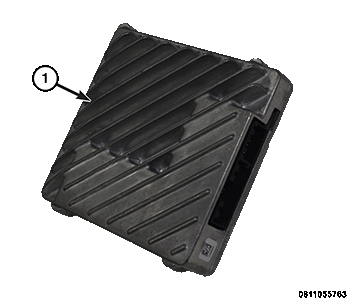

GC0172167Courtesy of CHRYSLER GROUP, LLC

The Active Noise Cancellation (ANC) module (1) is a stand-alone module on some SRT vehicles equipped with the Alpine audio system. The module is located behind the right rear quarter trim panel. On certain models equipped with the Harman Kardon audio system, the module is integral into the audio amplifier located behind the left quarter trim panel.

The ANC system also includes 4 microphones located in the headliner. These microphones are serviced separately from the headliner.
