Removal - Speaker

WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0175299Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the driver side floor console side cover (2). Refer to CONSOLE, FLOOR, REMOVAL .

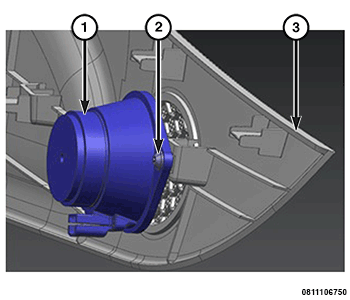

    GC0175233Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the instrument panel wiring harness connector from the EAM speaker (1).
  4. Remove the two screws (2) from the Emergency Assistance Module (EAM) speaker (1) that secure the speaker to the driver side floor console side cover (3).
  5. Remove the EAM speaker (1) from the vehicle.
