Sensor, Particulate Matter: Installation

GC0157423Courtesy of CHRYSLER GROUP, LLC
  1. Install the Particulate Matter (PM) sensor (1) and tighten to 60 N.m (44 ft. lbs.).

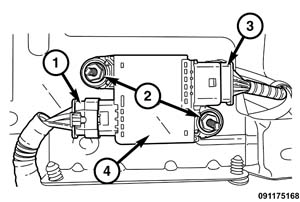

    GC0158426Courtesy of CHRYSLER GROUP, LLC
  2. Install the PM module (4). Tighten the nuts (2) to 11 N.m (8 ft. lbs.).
  3. Connect the PM sensor wire harness connector (1).

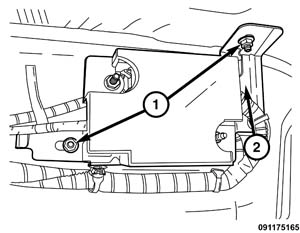

    GC0158422Courtesy of CHRYSLER GROUP, LLC
  4. Install the module mounting bracket (2). Tighten the nuts (1) to 11 N.m (8 ft. lbs.).

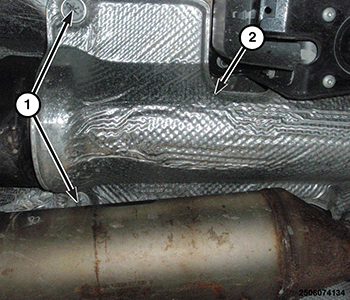

    GC0172164Courtesy of CHRYSLER GROUP, LLC
  5. Install the heat shield (2) and fasteners (1).

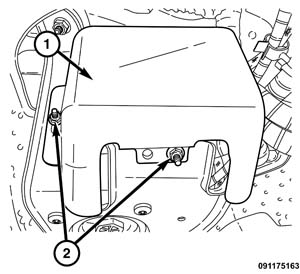

    GC0157415Courtesy of CHRYSLER GROUP, LLC
  6. Install the fuel filter shield (1). Tighten the nuts (2) 14 N.m (10 ft. lbs.).
  7. Remove the support and lower the vehicle.
  8. Connect the negative battery cables.
