Control Unit, Def Heater: Removal
WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the left rear wheel and tire.
- Partially remove the left rear wheel house to gain access to the Diesel Exhaust Fluid (DEF) Heater Control Unit (HCU). Refer to SHIELD, SPLASH, WHEELHOUSE REMOVAL - REAR
.

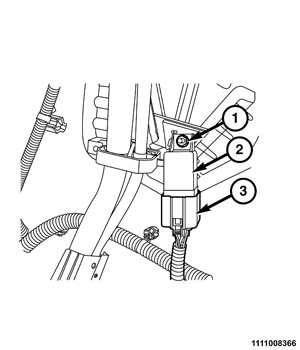

- Disconnect the DEF HCU wire harness connector (3).
- Remove the nut (1) and the DEF HCU (2).
