Module Installation

WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

This procedure is for Alpine audio system. For all other audio systems,

Refer to AMPLIFIER, INSTALLATION .

  1. Install the retainers to the Active Noise Cancellation (ANC) module and attach to the ANC module bracket.

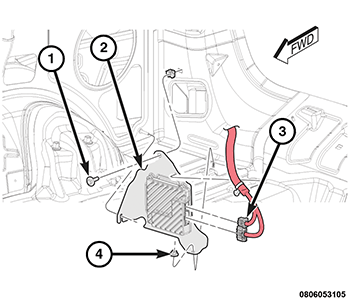

    GC0172171Courtesy of CHRYSLER GROUP, LLC
  2. Position the ANC module into place.
  3. Install and tighten the mounting fasteners (1) and (4).
  4. Connect the two wire harness connectors (3).
  5. Install the subwoofer. Refer to SPEAKER, INSTALLATION .
  6. Install the right quarter trim panel. Refer to PANEL, QUARTER TRIM, INSTALLATION .
  7. Connect the battery negative cable.
