BCM Connectors And Fasteners

WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

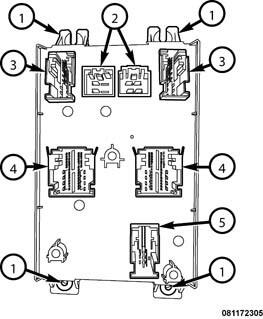

GC0154574Courtesy of CHRYSLER GROUP, LLC
Location Component
1 Fasteners
2 Power Connections
3 Underhood Connections
4 Body Connections
5 Instrument Panel Connection
