Module, Door (DDM/PDM): Removal
WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Remove the lower trim panel from the inside of the front door. Refer to PANEL, DOOR TRIM, REMOVAL .

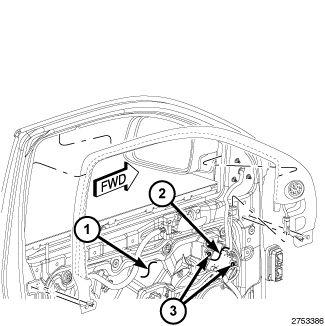

- Disconnect each of the electrical connectors from the connector receptacles of the door control module (2).
- Remove the two screws (3) that secure the door control module to the front door hardware module carrier (1).
- Remove the door control module from the door hardware module carrier.
