Module, Glow Plug, 3.0L Diesel: Removal

WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

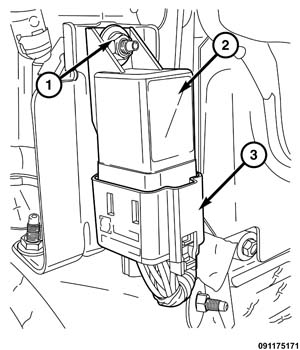

GC0158404Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Disconnect the glow plug harness connector (3).
  3. Remove the nut (1) and the glow plug module (2).
