Module, Keyless Ignition Node (Kin): Removal

WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL .
    GC0173785Courtesy of CHRYSLER GROUP, LLC

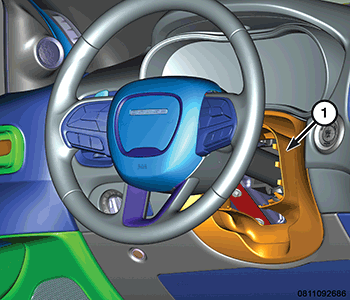

  3. Using a trim stick or another suitable wide flat-bladed tool, disengage the snap clips that secure the molded hard plastic outer edges of the steering column gap hider bezel (1) to the instrument panel.
    GC0173545Courtesy of CHRYSLER GROUP, LLC
  4. Position the telematic steering column outward and slide the gap hider forward.
    GC0175275Courtesy of CHRYSLER GROUP, LLC
  5. Remove the two screws (1) that secure the bezel to the dashboard cover and remove the bezel.
    GC0175213Courtesy of CHRYSLER GROUP, LLC
  6. Disconnect the wire harness connector (1) for the Keyless Ignition Node (KIN) module.
    GC0175250Courtesy of CHRYSLER GROUP, LLC
  7. Remove the two screws (1) securing the KIN module to the bezel.
