Fan Module-Radiator Cooling 1 (Manual Trans) Connector End View (D3022A)

Harness-Family: Cooling_Fan_Man

Color: BLACK

Gender: FEMALE

Part Number: 1/10053/97

Part Description: Not Available

Connector No: D3022A

Option: MANUAL TRANS

Repair Kit Part Number: Not Available

Cavity Count: null

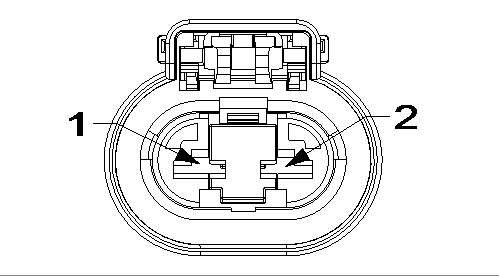

Fig 1: Fan Module-Radiator Cooling 1 Connector End View (MANUAL TRANS)
GCWD1013305Courtesy of CHRYSLER

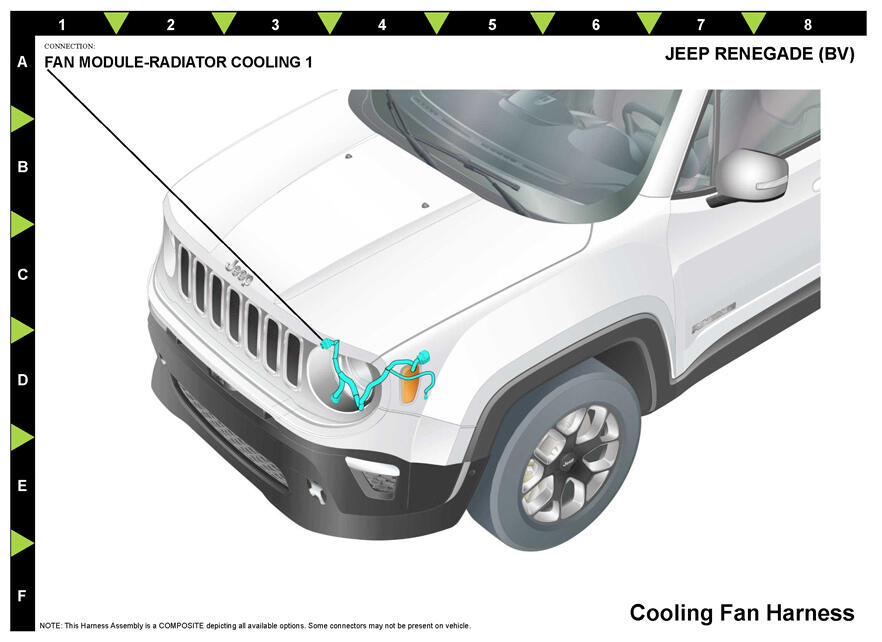

Fig 2: Fan Module-Radiator Cooling 1 Component Location (MANUAL TRANS)
GCWD1262759Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 N24 BN 6.0 FAN RELAY OUTPUT LIGHT DUTY COOLING
2 Z904 BK 6.0 GROUND LIGHT DUTY COOLING
(1) Pins not listed are not used for this connector
