Fan Module-Radiator Cooling 2 (Standard) Connector End View (D3022B)

Harness-Family: Cooling_Fan_Auto

Color: BLUE

Gender: FEMALE

Part Number: 1/11966/92

Part Description: Not Available

Connector No: D3022B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

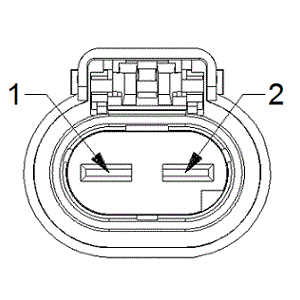

Fig 1: Fan Module-Radiator Cooling 2 Connector End View (Standard)

Courtesy of CHRYSLER

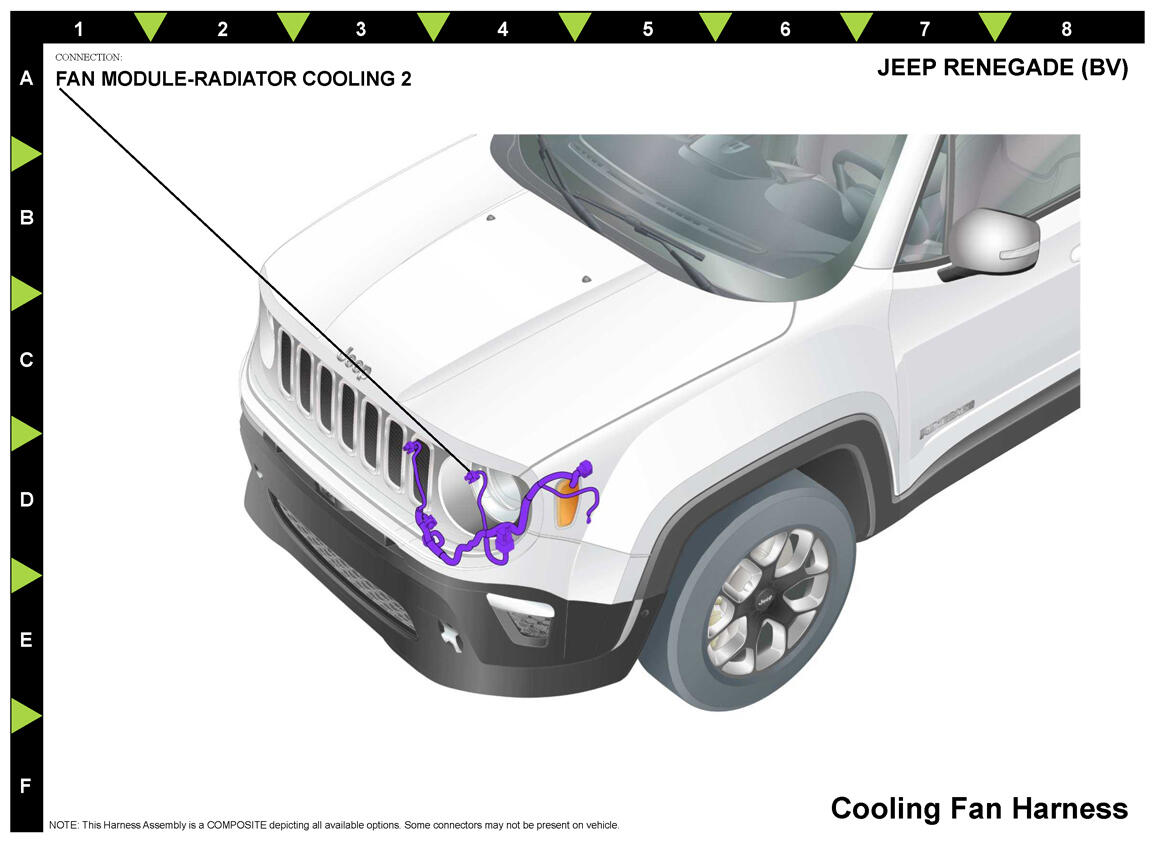

Fig 2: Fan Module-Radiator Cooling 2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

N24

6.0

FAN RELAY OUTPUT

HEAVY DUTY COOLING

Z920

6.0

GROUND

HEAVY DUTY COOLING

⁽¹⁾	Pins not listed are not used for this connector
