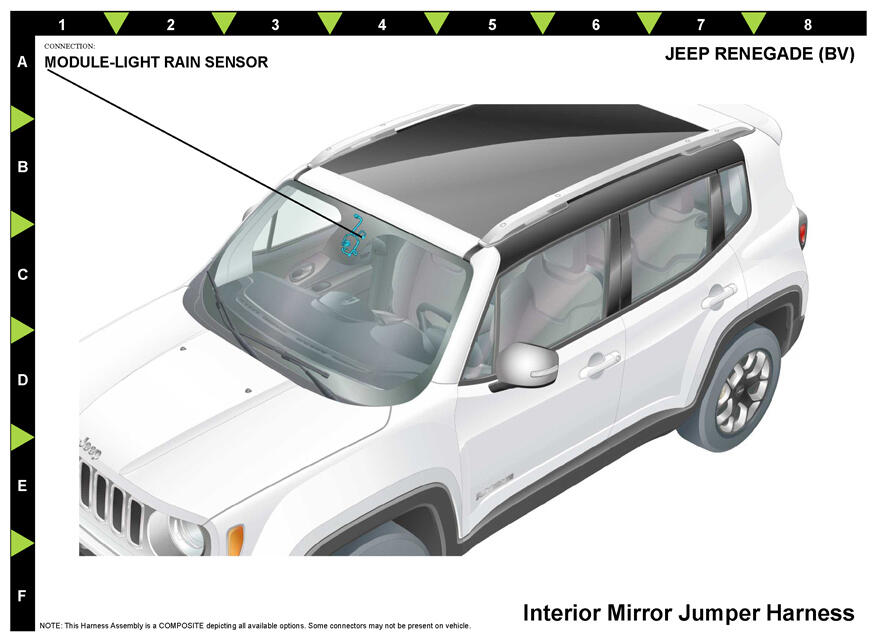

Module-Light Rain Sensor (Standard) Connector End View (D2683A)
Harness-Family: Mirror_Int_Jumper
Color: BLACK
Gender: FEMALE
Part Number: 1/05990/87
Part Description: Not Available
Connector No: D2683A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | F982 | DB/WH | 0.35 | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) | PREMIUM | ||
| 2 | Z909 | BK | 0.35 | GROUND | PREMIUM | ||
| 3 | D401 | GN/GY | 0.35 | LIN BUS | RAIN SENSE | ||
|
|||||||
