Module-Steering Column Control C3 (Standard) Connector End View (D3816C)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 0/14400/87

Part Description: Not Available

Connector No: D3816C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Steering Column Control C3 Connector End View (Standard)
GCWD1000395Courtesy of CHRYSLER

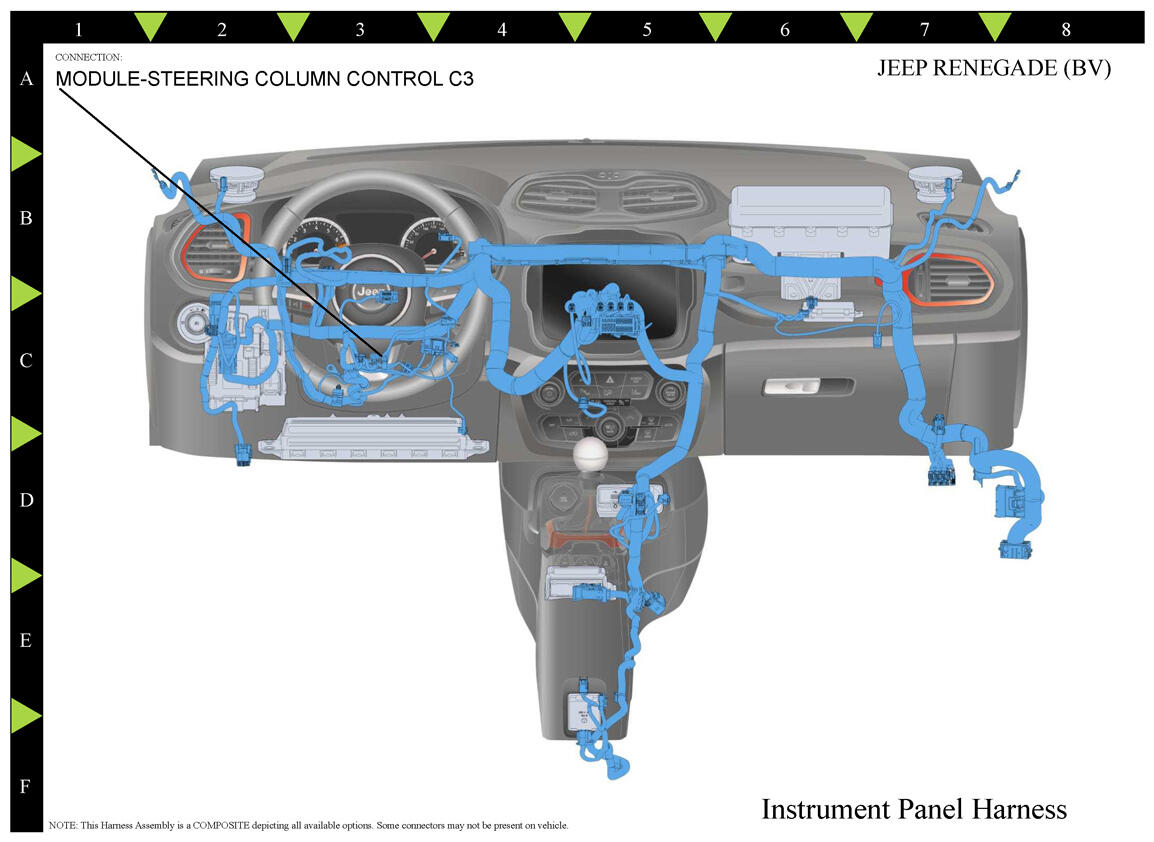

Fig 2: Module-Steering Column Control C3 Component Location (Standard)
GCWD1263047Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 C91 GY/GN 1.5 HEATED STEERING WHEEL FEED HEATED STEERING WHEEL
2 C986 GY/YE 1.5 HEATED STEERING WHEEL RETURN HEATED STEERING WHEEL
(1) Pins not listed are not used for this connector
