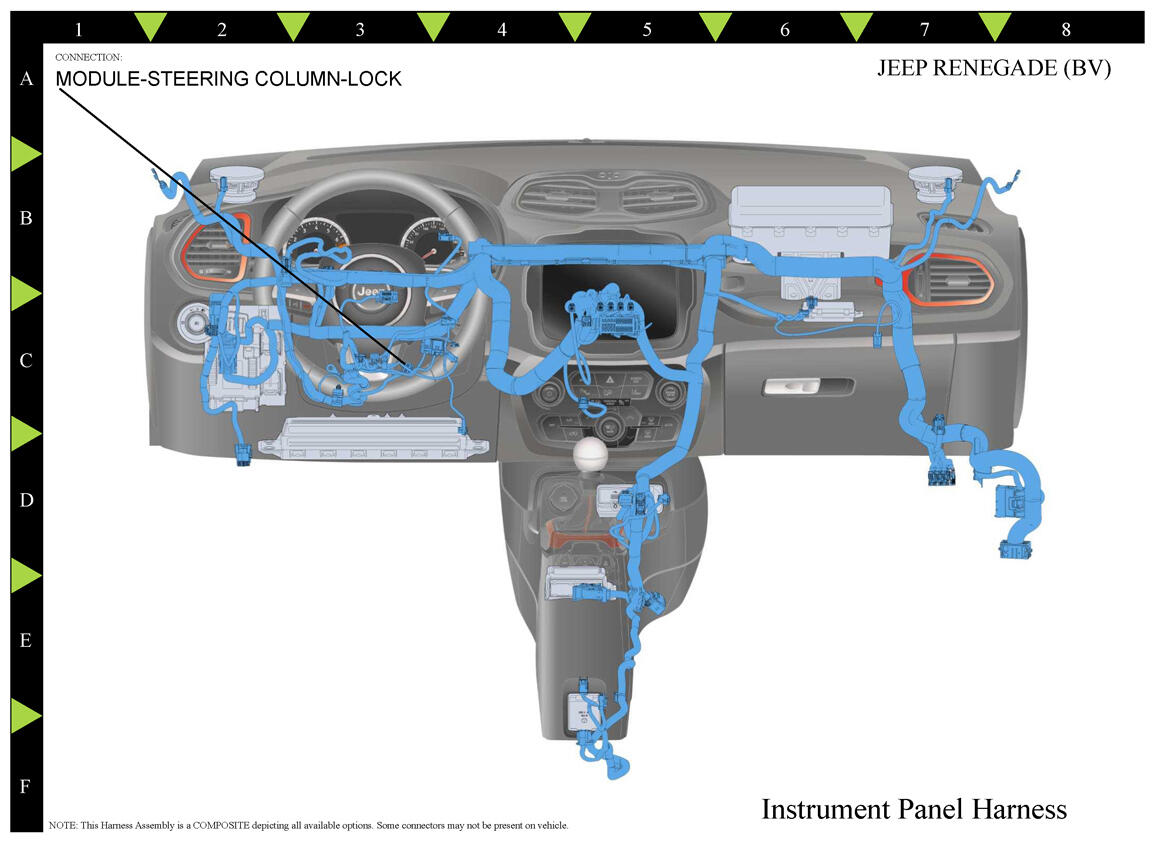

Module-Steering Column-Lock (Standard) Connector End View (D0007A)
Harness-Family: IP
Color: BLACK
Gender: FEMALE
Part Number: 1/08721/07
Part Description: Not Available
Connector No: D0007A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | A108 | RD | 0.5 | FUSED B(+) | EXPORT | ||
| 3 | F892 | DB/OG | 0.5 | IGNITION KEY-IN SIGNAL | EXPORT | ||
| 5 | Z908 | BK | 0.5 | GROUND | EXPORT | ||
| 9 | D3 | GN/WH | 0.35 | CAN CH (+) | EXPORT | ||
| 10 | D4 | BN/WH | 0.35 | CAN CH (-) | EXPORT | ||
| 12 | K320 | GY/WH | 0.5 | KEY LOCK SOLENOID SIGNAL | EXPORT | ||
|
|||||||
