Fan Module-Radiator Cooling 1 (1.0L/1.3L) Connector End View (D3022A)

Harness-Family: Front_End_Module

Color: BLACK

Gender: FEMALE

Part Number: 1/14838/97

Part Description: Not Available

Connector No: D3022A

Option: 1.0L/1.3L

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Fan Module-Radiator Cooling 1 Connector End View (1.0L/1.3L)

Courtesy of CHRYSLER

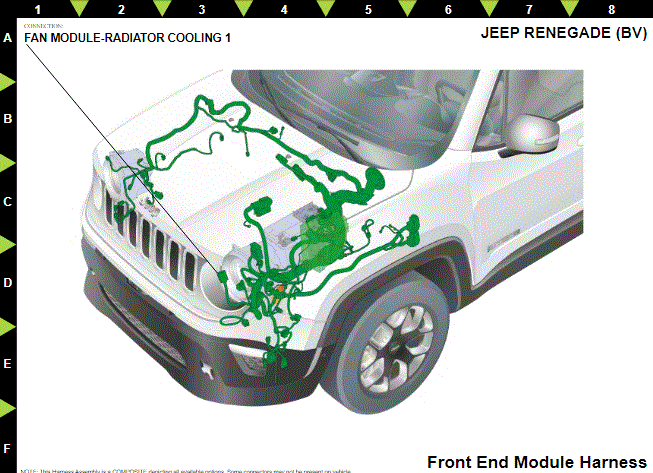

Fig 2: Fan Module-Radiator Cooling 1 Component Location (1.0L/1.3L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A13

10.0

FUSED B(+)

1.0L/1.3L EXCEPT EXPORT

Z904

10.0

GROUND

1.0L/1.3L EXCEPT EXPORT

K173

0.5

RADIATOR FAN CONTROL SIGNAL

1.0L/1.3L

F343

DB/GN

0.5

FUSED ASD RELAY OUTPUT

1.0L/1.3L

⁽¹⁾	Pins not listed are not used for this connector
