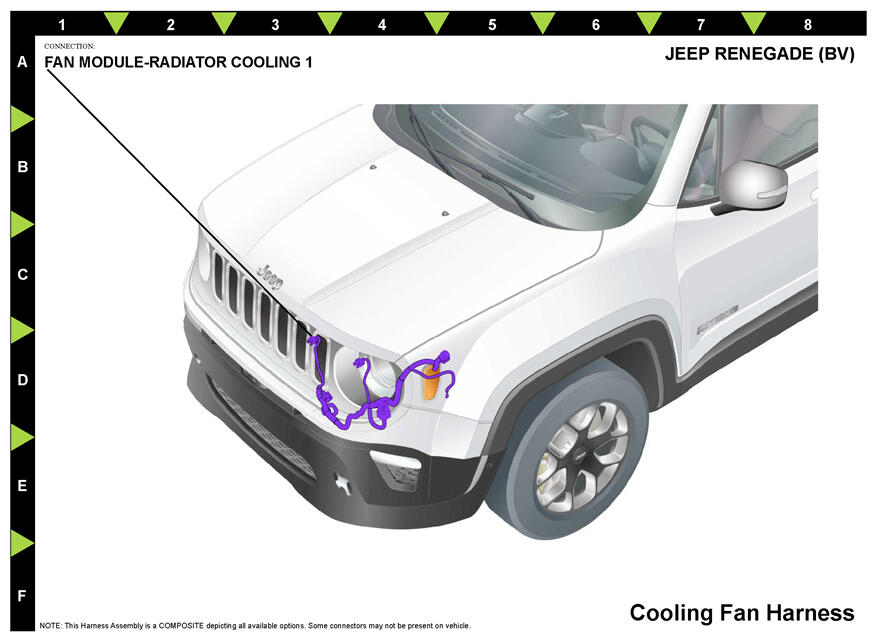

Fan Module-Radiator Cooling 1 (Automatic Transmission) Connector End View (D3022A)
Harness-Family: Cooling_Fan_Auto
Color: BLACK
Gender: FEMALE
Part Number: 1/10053/97
Part Description: Not Available
Connector No: D3022A
Option: AUTOMATIC TRANSMISSION
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | N24 | BN | 6.0 | FAN RELAY OUTPUT | HEAVY DUTY COOLING | ||
| 2 | Z904 | BK | 6.0 | GROUND | HEAVY DUTY COOLING | ||
|
|||||||
