Module-Compass (Standard) Connector End View (D3865A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: HCMPB-04-K

Part Description: Not Available

Connector No: D3865A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Compass Connector End View (Standard)

Courtesy of CHRYSLER

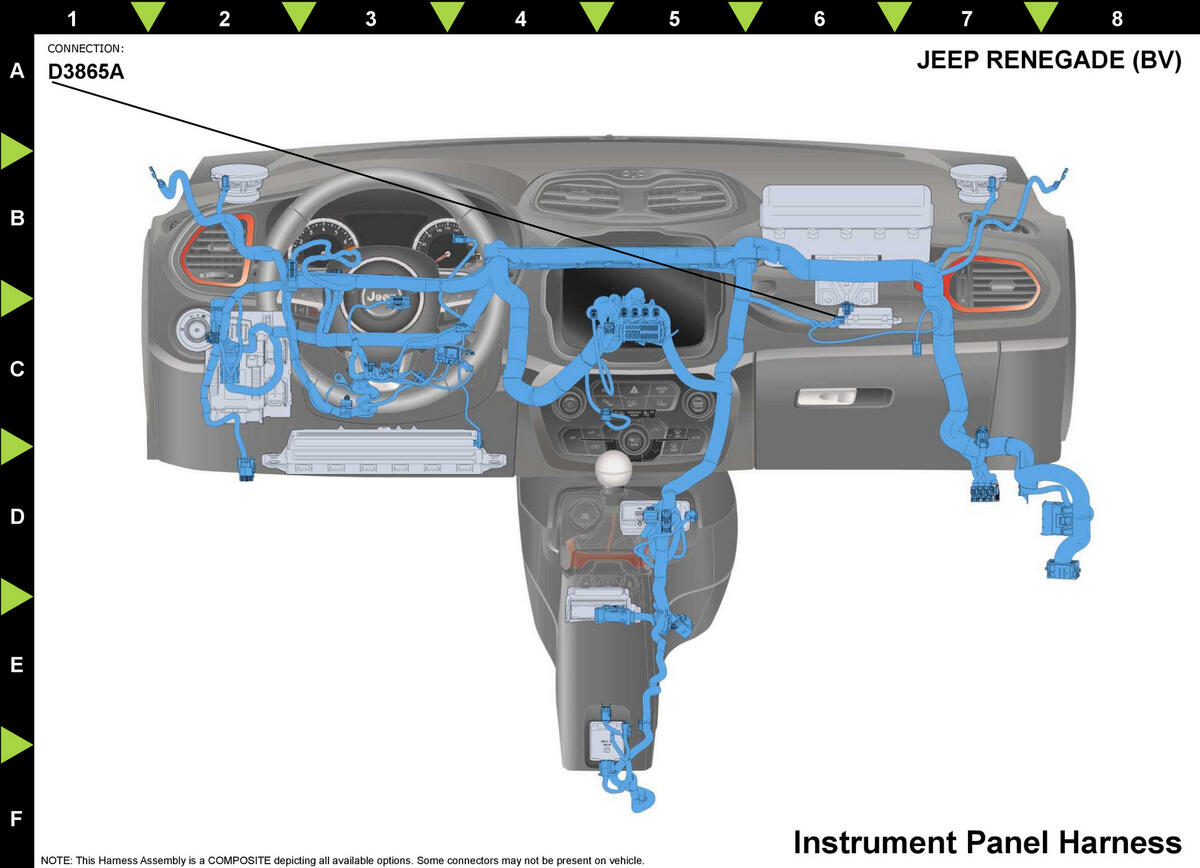

Fig 2: Module-Compass Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D403

GY/BK

0.35

LIN BUS

BASE

Z912

0.5

GROUND

BASE

F982

WH/DB

0.5

FUSED IGNITION SWITCH OUTPUT (RUN-ACC)

BASE

⁽¹⁾	Pins not listed are not used for this connector
