Module-Inverter 220VAC (Standard) Connector End View (D2831A)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 1456471-4

Part Description: Not Available

Connector No: D2831A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Inverter 220vac Connector End View (Standard)

Courtesy of CHRYSLER

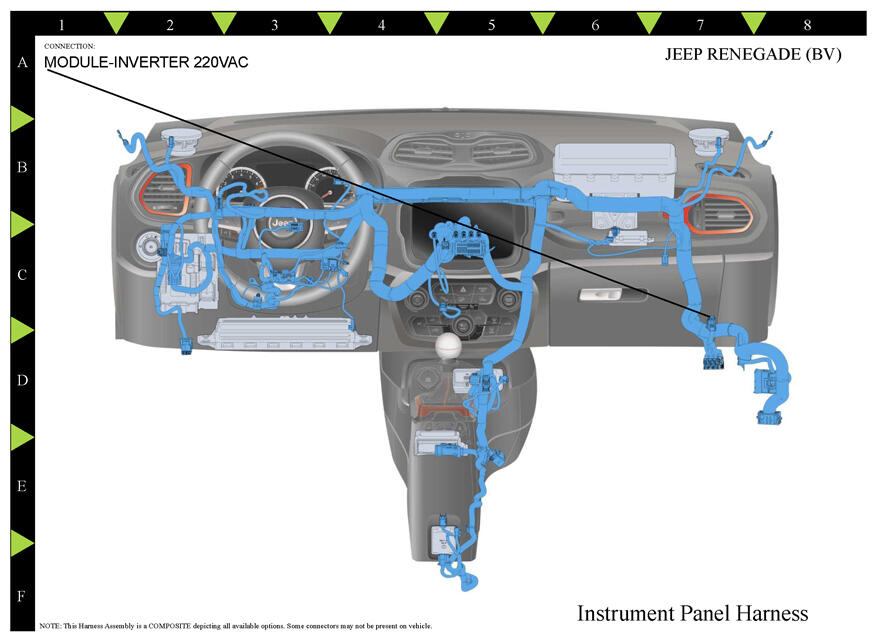

Fig 2: Module-Inverter 220vac Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P828

GN/WH

1.0

220 VOLT AC LINE 2

EXPORT

A401

RD/WH

2.5

FUSED B(+)

EXPORT

P824

1.0

220 VOLT AC LINE 1

EXPORT

P827

BK/VT

0.35

INVERTER SWITCH SIGNAL

EXPORT

Z910

2.5

GROUND

EXPORT

⁽¹⁾	Pins not listed are not used for this connector
