Module-Occupant Restraint Controller C1 (Standard) Connector End View (D3834A)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: AIRBAG54

Part Description: Not Available

Connector No: D3834A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Occupant Restraint Controller C1 Connector End View (Standard)
GCWD1012888Courtesy of CHRYSLER

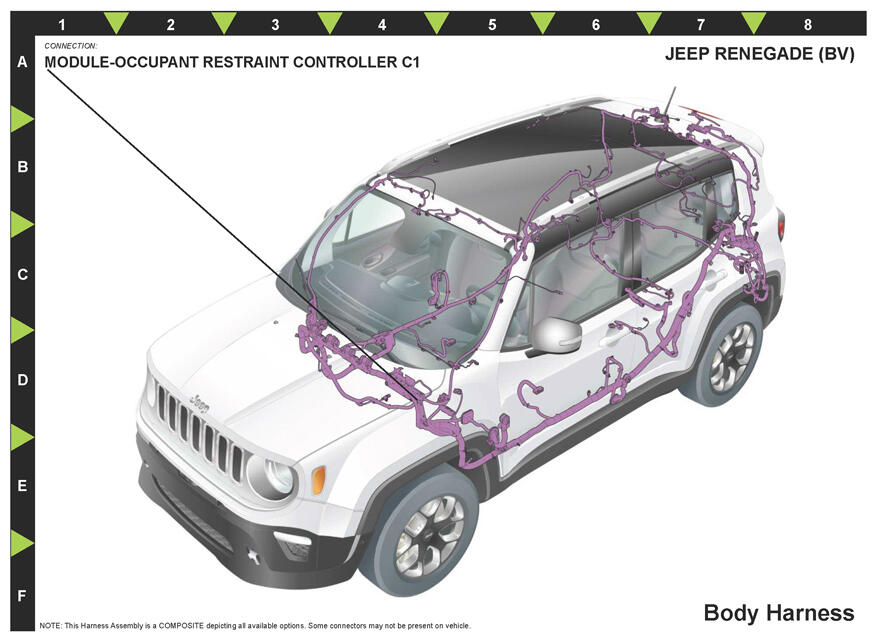

Fig 2: Module-Occupant Restraint Controller C1 Component Location (Standard)
GCWD1263232Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R5 GN/BK 0.5 LEFT SEAT THORAX SQUIB 1 LINE 2 LHD
2 R7 GN/YE 0.5 LEFT SEAT THORAX SQUIB 1 LINE 1 LHD
3 R8 OG 0.5 RIGHT SEAT THORAX SQUIB 1 LINE 1 LHD
4 R6 OG/BK 0.5 RIGHT SEAT THORAX SQUIB 1 LINE 2 LHD
5 R277 OG/WH 0.5 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2 EXCEPT EXPORT
6 R278 DB/GN 0.5 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1 EXCEPT EXPORT
7 R280 WH/DB 0.5 PASENGER SEAT BELT RETRACTOR TENSIONER LINE 1 EXCEPT EXPORT
8 R279 YE/BK 0.5 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2 EXCEPT EXPORT
9 R504 GY/BK 0.75 PASSENGER SEAT BELT ANCHOR TENSIONER LINE 2 N/A
10 R506 GY/DB 0.75 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
11 R505 YE 0.75 DRIVER SEAT BELT ANCHOR TENSIONER LINE 1 N/A
12 R503 YE/BK 0.75 DRIVER SEAT BELT ANCHOR TENSIONER LINE 2 N/A
23 D3 GN/WH 0.35 CAN CH (+) BASE
24 D4 BN/WH 0.35 CAN CH (-) BASE
25 R36 GY 0.5 2R SEAT BELT RETRACTOR PRET (+) RT EXPORT
26 R38 OG/DB 0.5 2R SEAT BELT RETRACTOR PRET (-) RT EXPORT
27 R37 GY/BK 0.5 2R SEAT BELT RETRACTOR PRET (-) LT EXPORT
28 R35 YE 0.5 2R SEAT BELT RETRACTOR PRET (+) LT EXPORT
31 R2 GN 0.5 RIGHT CURTAIN SQUIB 1 LINE 2 N/A
32 R4 WH 0.5 RIGHT CURTAIN SQUIB 1 LINE 1 N/A
33 R3 DB 0.5 LEFT CURTAIN SQUIB 1 LINE 1 N/A
34 R1 BN 0.5 LEFT CURTAIN SQUIB 1 LINE 2 N/A
37 R263 WH/GN 0.35 DRIVER SEAT POSITION SENSOR VOLTAGE EXCEPT EXPORT
38 R264 WH/VT 0.35 PASSENGER SEAT POSITION SENSOR VOLTAGE EXCEPT EXPORT
39 R57 WH/RD 0.35 DRIVER SEAT BELT BUCKLE SWITCH SENSE N/A
40 R58 WH/YE 0.35 PASSENGER SEAT BELT SWITCH SENSE N/A
41 R71 BN/OG 0.35 LEFT REAR SEAT BELT BUCKLE SWITCH SENSE N/A
42 R72 BN/GY 0.35 RIGHT REAR SEAT BELT BUCKLE SWITCH SENSE N/A
43 R27 BN/VT 0.35 2ND ROW SEAT BELT SWITCH SENSE N/A
44 R140 GN/WH 0.35 RIGHT SIDE IMPACT PRESSURE SENSOR SIGNAL EXCEPT EXPORT
45 R729 GN/BN 0.35 DRIVER SEAT DETECTION RETURN N/A
46 R90 BN/DB 0.35 REAR SEAT OCCUPANT DETECTION SENSE CENTER N/A
51 R13 GY/RD 0.35 LEFT SIDE IMPACT SENSOR 1 SIGNAL N/A
52 R15 GY/BN 0.35 LEFT SIDE IMPACT SENSOR 1 GROUND N/A
53 R16 GY/YE 0.35 RIGHT SIDE IMPACT SENSOR 1 GROUND N/A
54 R14 GY/WH 0.35 RIGHT SIDE IMPACT SENSOR 1 SIGNAL N/A
(1) Pins not listed are not used for this connector
