Module-Occupant Restraint Controller C2 (Standard) Connector End View (D3834B)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: AIRBAG30

Part Description: Not Available

Connector No: D3834B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Occupant Restraint Controller C2 Connector End View (Standard)

Courtesy of CHRYSLER

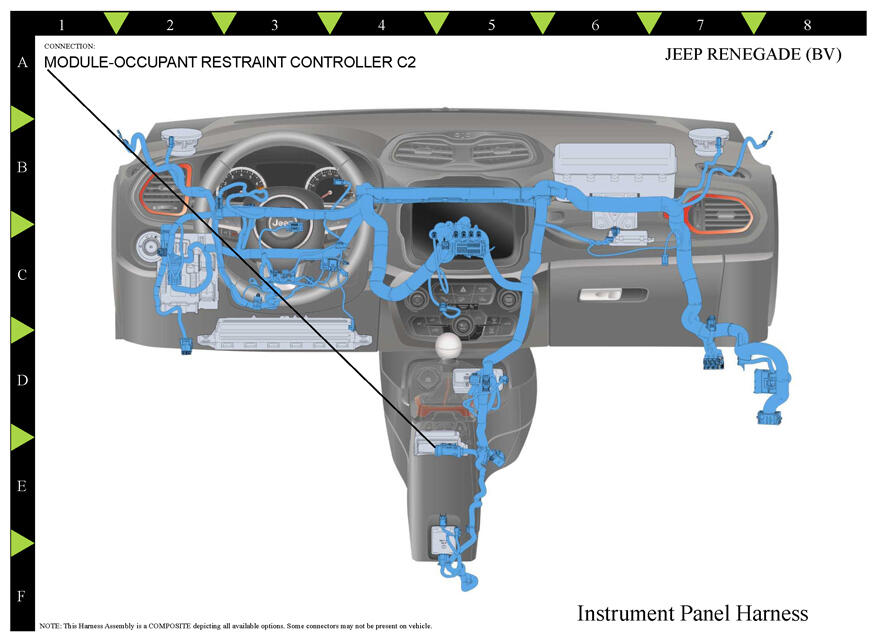

Fig 2: Module-Occupant Restraint Controller C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R45

BN/YE

0.5

DRIVER SQUIB 1 LINE 1

N/A

R43

BN/GY

0.5

DRIVER SQUIB 1 LINE 2

N/A

R61

GN/BK

0.5

DRIVER SQUIB 2 LINE 2

EXCEPT EXPORT

R63

GN/YE

0.5

DRIVER SQUIB 2 LINE 1

EXCEPT EXPORT

WH/BK

0.5

DRIVER KNEE BLOCKER SQUIB LINE 2

N/A

R11

BN/DB

0.5

DRIVER KNEE BLOCKER SQUIB LINE 1

N/A

F100

DB/YE

0.5

FUSED IGNITION RUN CONTROL OUTPUT

N/A

D436

0.35

CAN C (+)

N/A

R44

GN/RD

0.5

PASSENGER SQUIB 1 LINE 1

N/A

R42

OG/BK

0.5

PASSENGER SQUIB 1 LINE 2

N/A

R62

WH/BK

0.5

PASSENGER SQUIB 2 LINE 2

N/A

R64

WH/DB

0.5

PASSENGER SQUIB 2 LINE 1

N/A

R68

BN/WH

0.5

PASSENGER SQUIB 3 LINE 1

N/A

R66

OG/DB

0.5

PASSENGER SQUIB 3 LINE 2

N/A

D435

0.35

CAN C (-)

N/A

R168

GY/DB

0.35

AIRBAG OFF LAMP PASSENGER

EXPORT

R167

GY/WH

0.35

AIRBAG ON LAMP PASSENGER

EXPORT

R79

0.35

LEFT FRONT IMPACT SENSOR SIGNAL

N/A

R81

BN/BK

0.35

LEFT FRONT IMPACT SENSOR GROUND

N/A

R82

GY/BK

0.35

RIGHT FRONT IMPACT SENSOR GROUND

EXCEPT EXPORT

R80

0.35

RIGHT FRONT IMPACT SENSOR SIGNAL

EXCEPT EXPORT

⁽¹⁾	Pins not listed are not used for this connector
