Module-Powertrain Control C1 (2.4L) Connector End View (D3821A)

Harness-Family: Front_End_Module

Color: BLACK

Gender: FEMALE

Part Number: 2098491-1_2098863-6

Part Description: Not Available

Connector No: D3821A

Option: 2.4L

Repair Kit Part Number: Not Available

Cavity Count: null

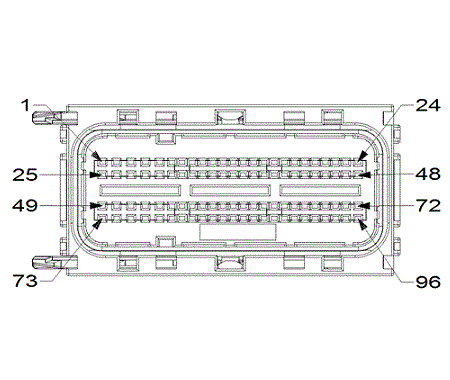

Fig 1: Module-Powertrain Control C1 Connector End View (2.4L)

Courtesy of CHRYSLER

Fig 2: Module-Powertrain Control C1 Component Location (2.4L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K52

BK/GN

0.75

EVAP PURGE CONTROL

2.4L

B135

GN/RD

0.75

BRAKE SIGNAL 2

2.4L

K854

WH/GN

0.75

5 VOLT SUPPLY

BASE

K175

YE/BK

0.75

RAD FAN CONTROL

2.4L

C13

GY/DB

0.75

A/C CLUTCH CONTROL

WITH A/C

K51

WH/BK

0.75

ASD RELAY CONTROL

2.4L

K173

YE/BK

0.75

RADIATOR FAN CONTROL SIGNAL

2.4L

D435

BN/YE

0.75

CAN C (-)

2.4L

N70

VT/OG

0.75

TANK PRESSURE SENSOR SIGNAL

2.4L

T753

BN/GY

0.75

IGNITION CRANK SENSE

2.4L

GN/RD

0.75

FUEL TANK PRESSURE SENSOR SUPPLY

2.4L

K854

WH/BK

0.75

5 VOLT SUPPLY

2.4L

Z909

1.5

GROUND

2.4L

Z909

1.5

GROUND

2.4L

Z909

1.5

GROUND

2.4L

D436

0.75

CAN C (+)

2.4L

C18

OG/BK

0.75

A/C PRESSURE SIGNAL

WITH A/C

K400

BK/VT

0.75

APP SENSOR GROUND 2

2.4L

K167

BK/GN

0.75

APP SENSOR GROUND 1

2.4L

N10

GN/BK

0.75

FUEL TANK PRESSURE SENSOR RETURN

2.4L

Z909

1.5

GROUND

2.4L

F343

DB/RD

1.5

FUSED ASD RELAY OUTPUT

2.4L

F343

DB/RD

1.5

FUSED ASD RELAY OUTPUT

2.4L

F343

DB/RD

1.5

FUSED ASD RELAY OUTPUT

2.4L

F343

DB/RD

1.5

FUSED ASD RELAY OUTPUT

2.4L

F343

DB/RD

1.5

FUSED ASD RELAY OUTPUT

2.4L

K914

BK/VT

0.75

SENSOR GROUND

WITH A/C

K29

GY/GN

0.75

APP SIGNAL 2

2.4L

K23

GY/BK

0.75

APP SIGNAL 1

2.4L

K108

OG/DB

0.75

ESIM SIGNAL

2.4L

T752

OG/WH

0.75

STARTER RELAY CONTROL

2.4L

A209

BN/RD

0.75

FUSED B(+)

2.4L

⁽¹⁾	Pins not listed are not used for this connector
