Module-Powertrain Control C3 (2.4L) Connector End View (D3821C)

Harness-Family: Front_End_Module

Color: NA

Gender: FEMALE

Part Number: 1/20498/44

Part Description: Not Available

Connector No: D3821C

Option: 2.4L

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Powertrain Control C3 Connector End View (2.4L)
GCWD1011540Courtesy of CHRYSLER

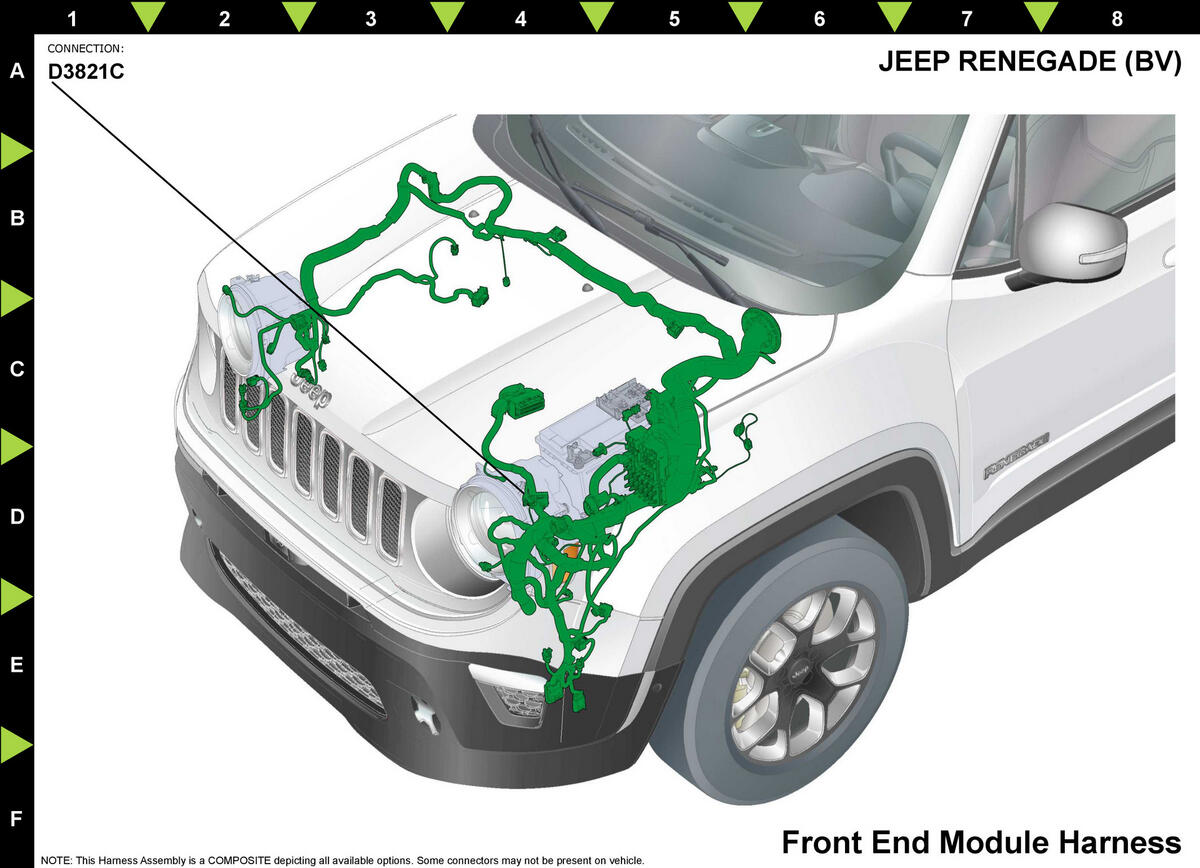

Fig 2: Module-Powertrain Control C3 Component Location (2.4L)
GCWD1263158Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z909 BK 4.0 GROUND 2.4L
(1) Pins not listed are not used for this connector
