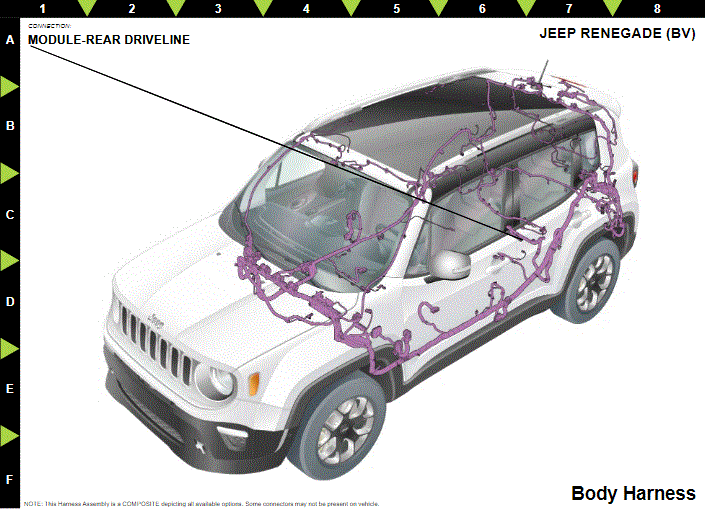

Module-Rear Driveline (Standard) Connector End View (D3901A)
Harness-Family: Body
Color: BLACK
Gender: FEMALE
Part Number: 1/14601/87
Part Description: Not Available
Connector No: D3901A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 2 | A750 | RD/VT | 2.5 | RDM MOTOR (+) | 4X4 | ||
| 3 | G305 | BK/VT | 2.5 | RDM MOTOR (-) | 4X4 | ||
| 4 | T332 | OG | 0.5 | RDM POSITION SENSOR 1/2 SUPPLY | 4X4 | ||
| 5 | T330 | WH | 0.5 | RDM TEMP SENSOR RETURN | 4X4 | ||
| 6 | T334 | DB | 0.5 | RDM POSITION SENSOR 2 SIGNAL | 4X4 | ||
| 7 | S000 | NA | 0.5 | SHIELD GROUND | 4X4 | ||
| 8 | T331 | BN | 0.5 | RDM TEMP SENSOR SIGNAL | 4X4 | ||
| 9 | T335 | RD | 0.5 | RDM POSITION SENSOR 1/2 RETURN | 4X4 | ||
| 10 | T333 | BK | 0.5 | RDM POSITION SENSOR 1 SIGNAL | 4X4 | ||
| 11 | S000 | NA | 0.5 | SHIELD GROUND | 4X4 | ||
|
|||||||
