Module-Steering Column Control C2 (Standard) Connector End View (D3816B)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 1/14526/81

Part Description: Not Available

Connector No: D3816B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Steering Column Control C2 Connector End View (Standard)

Courtesy of CHRYSLER

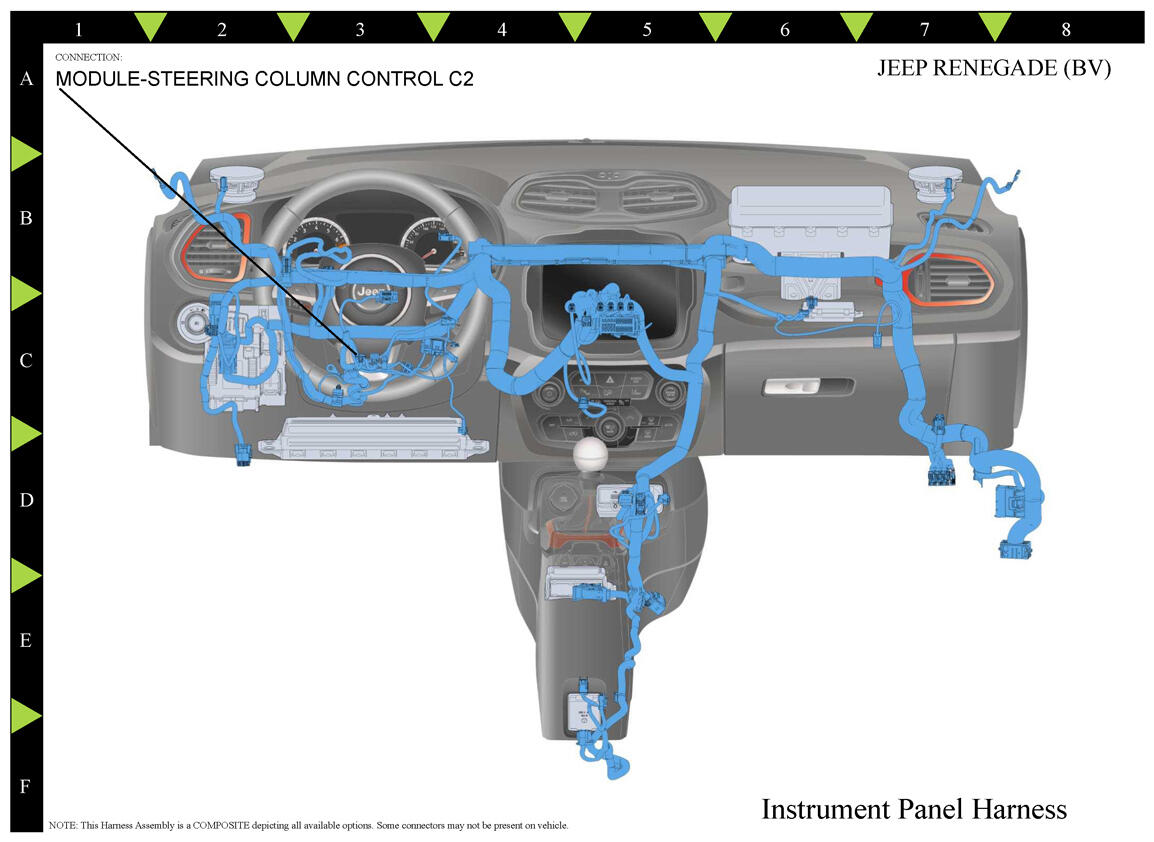

Fig 2: Module-Steering Column Control C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R61

GN/BK

0.5

DRIVER SQUIB 2 LINE 2

EXCEPT EXPORT

R63

GN/YE

0.5

DRIVER SQUIB 2 LINE 1

EXCEPT EXPORT

R43

BN/GY

0.5

DRIVER SQUIB 1 LINE 2

N/A

R45

BN/YE

0.5

DRIVER SQUIB 1 LINE 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
