Module-Steering Column Control C4 (Standard) Connector End View (D3816D)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 33401470

Part Description: Not Available

Connector No: D3816D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Steering Column Control C4 Connector End View (Standard)
GCWD1239634Courtesy of CHRYSLER

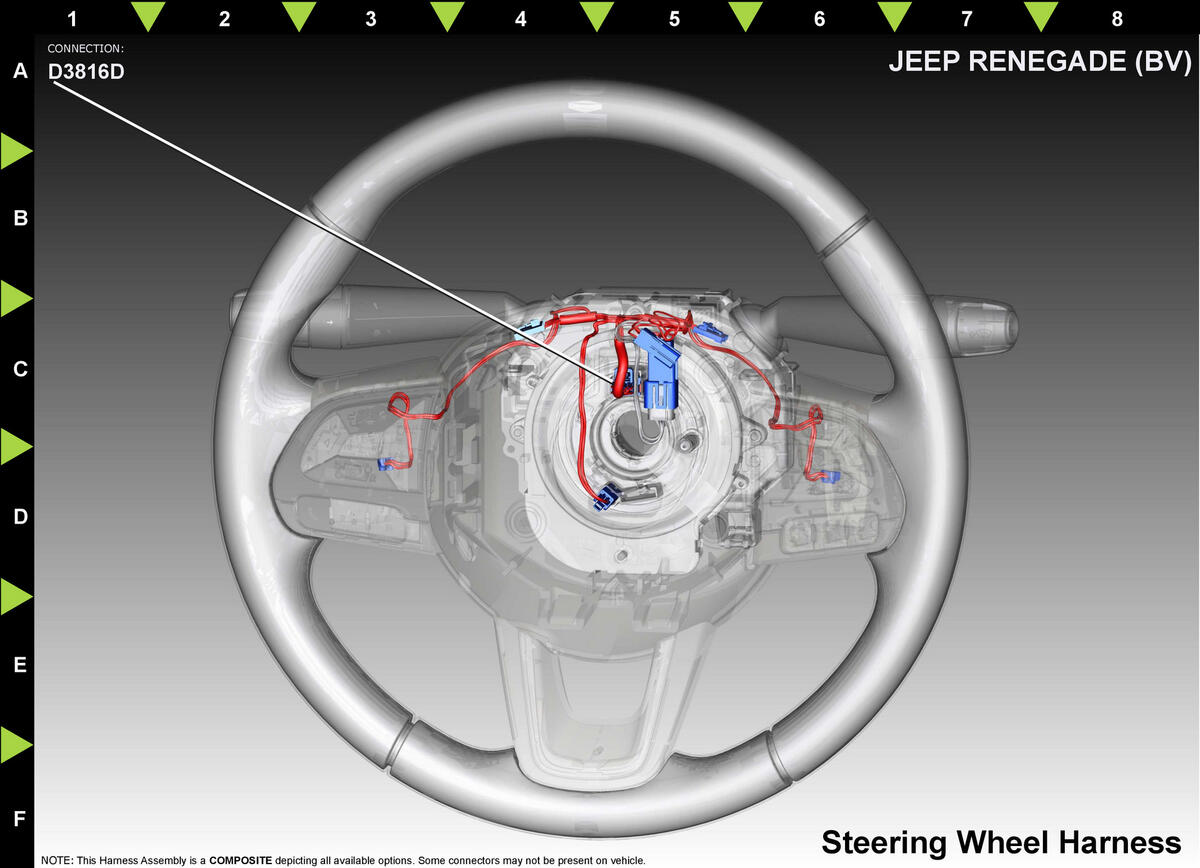

Fig 2: Module-Steering Column Control C4 Component Location (Standard)
GCWD1263334Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z908 BK 0.75 GROUND N/A
2 X3 GN/WH 0.35 HORN SWITCH SENSE N/A
3 Q117 RD/GN 0.75 IGNITION FEED N/A
9 D402 GY/GN 0.35 LIN BUS N/A
10 D404 GN/BN 0.35 LIN BUS SPEED CONTROL
(1) Pins not listed are not used for this connector
