Module-Steering Column Control C5 (Standard) Connector End View (D3816E)

Harness-Family: Steering_Wheel

Color: NA

Gender: FEMALE

Part Number: HARD_WIRED

Part Description: Not Available

Connector No: D3816E

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Steering Column Control C5 Connector End View (Standard)

Courtesy of CHRYSLER

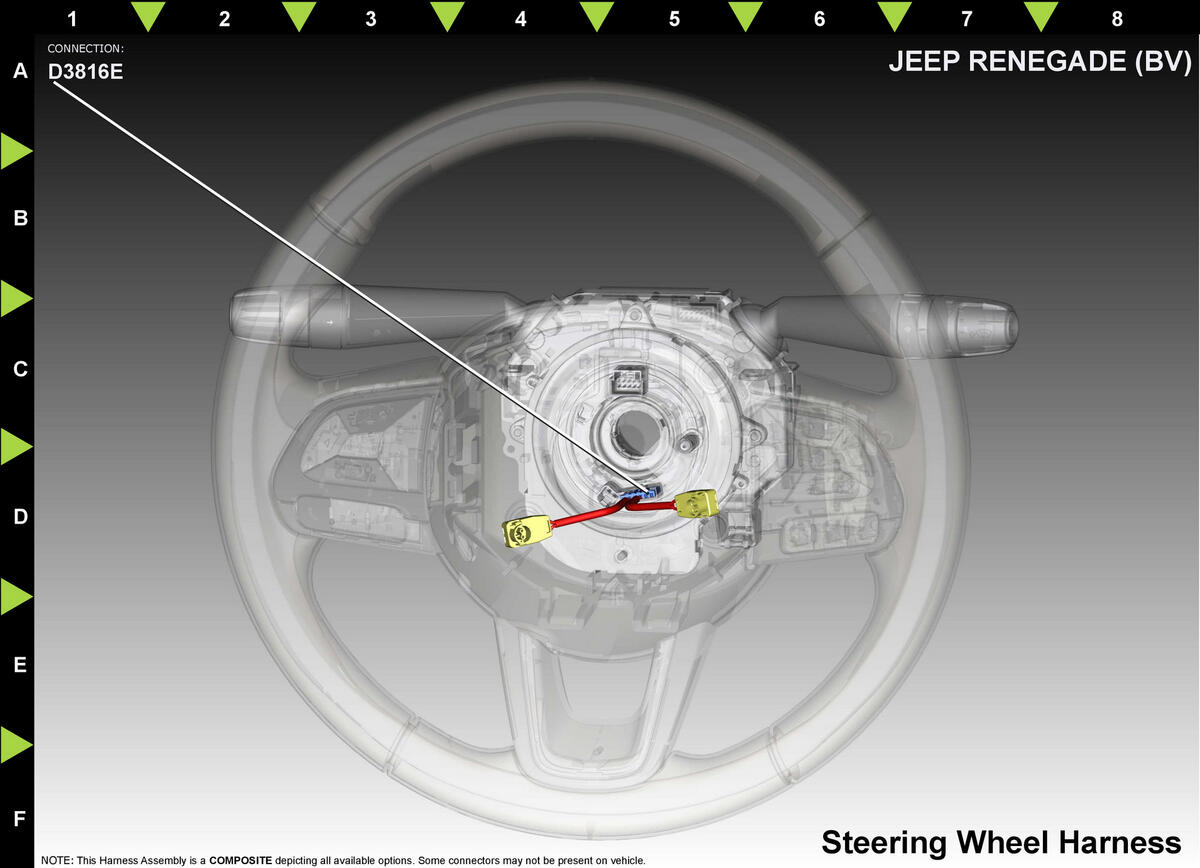

Fig 2: Module-Steering Column Control C5 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R43

BN/GY

0.5

DRIVER SQUIB 1 LINE 2

N/A

R61

GN/BK

0.5

DRIVER SQUIB 2 LINE 2

EXCEPT EXPORT

R45

BN/YE

0.5

DRIVER SQUIB 1 LINE 1

N/A

R63

GN/YE

0.5

DRIVER SQUIB 2 LINE 1

EXCEPT EXPORT

⁽¹⁾	Pins not listed are not used for this connector
