Module-Transmission Control C3 (Standard) Connector End View (D3855C)

Harness-Family: Front_End_Module

Color: NA

Gender: FEMALE

Part Number: 1/20498/44

Part Description: Not Available

Connector No: D3855C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Transmission Control C3 Connector End View (Standard)

Courtesy of CHRYSLER

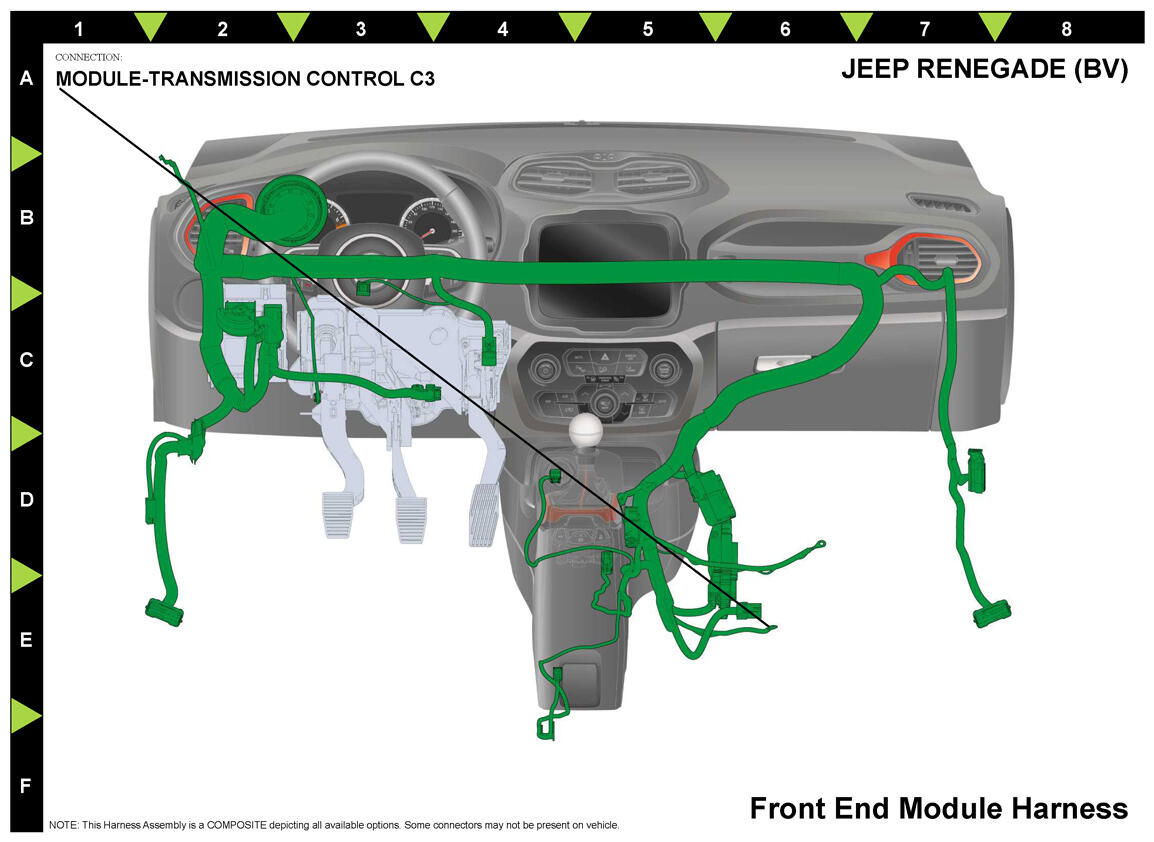

Fig 2: Module-Transmission Control C3 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z906

4.0

GROUND

DDCT

⁽¹⁾	Pins not listed are not used for this connector
