Module-Inverter (Standard) Connector End View (D2831A)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 1456471-4

Part Description: Not Available

Connector No: D2831A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

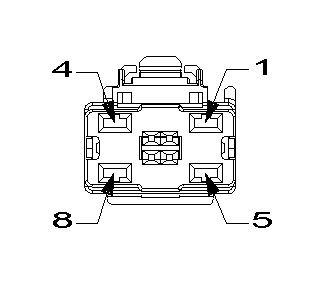

Fig 1: Module-Inverter Connector End View (Standard)

Courtesy of CHRYSLER

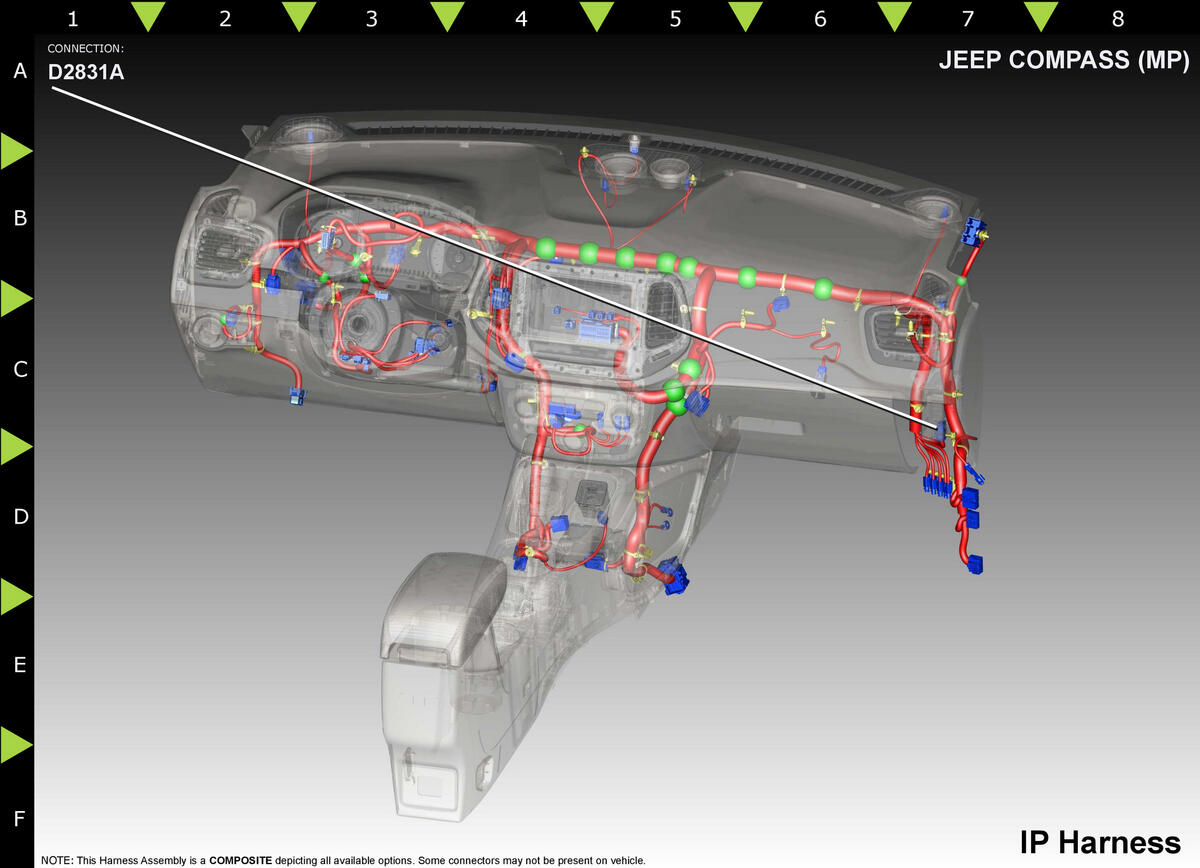

Fig 2: Module-Inverter Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P802

GN/OG

1.0

110/220 VOLT A/C INVERTER LINE 2

N/A

A401

RD/GN

2.0

FUSED B(+)

N/A

P801

1.0

110/220 VOLT A/C INVERTER LINE 1

N/A

P805

GN/DB

0.50

110/220 VOLT A/C INVERTER ENABLE

N/A

Z930

2.0

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
