Module-Occupant Restraint Controller C1 (Standard) Connector End View (D3834A)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 2098963-1_2098974-1_2098973-1

Part Description: Not Available

Connector No: D3834A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

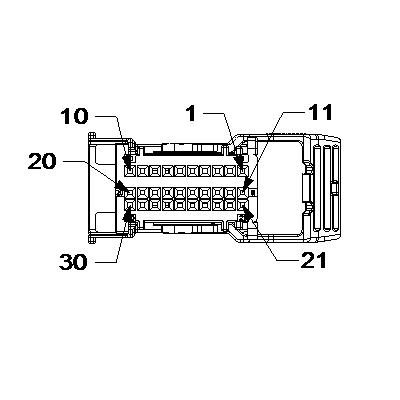

Fig 1: Module-Occupant Restraint Controller C1 Connector End View (Standard)

Courtesy of CHRYSLER

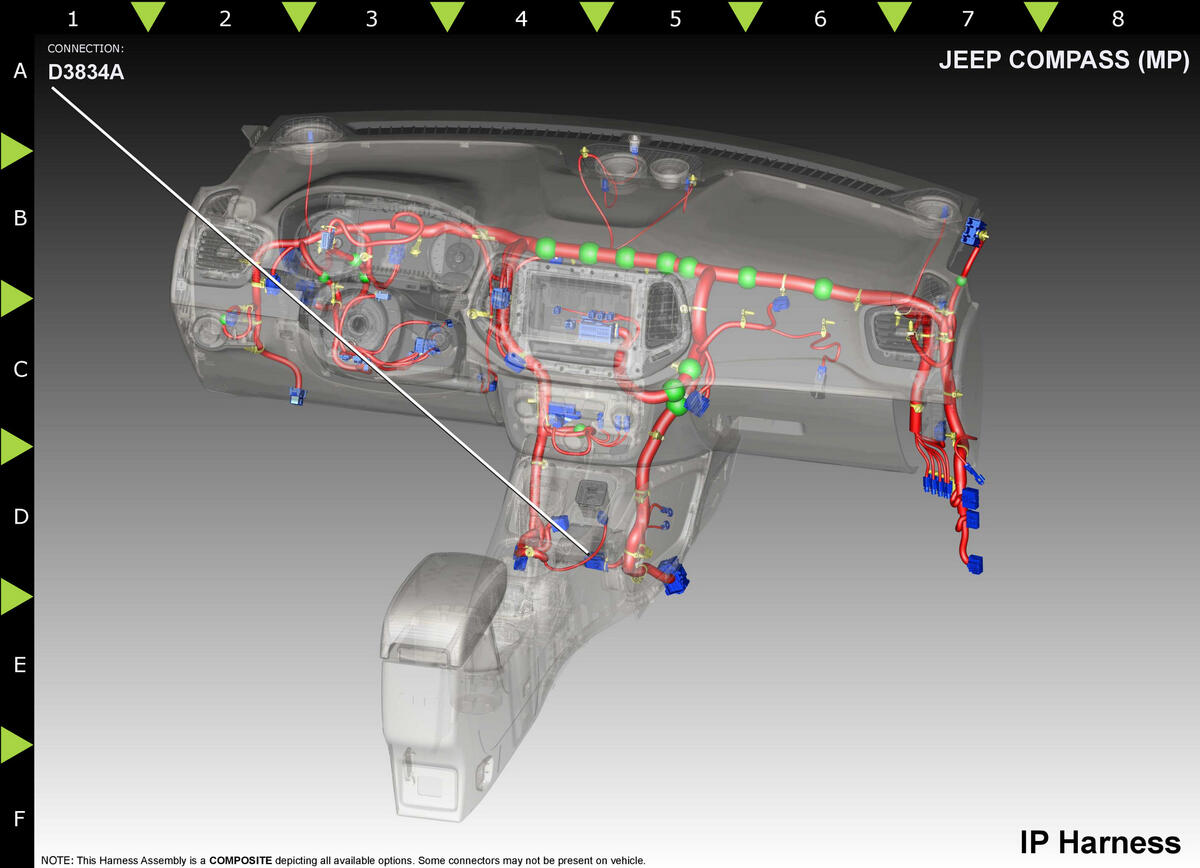

Fig 2: Module-Occupant Restraint Controller C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R41

BU/OG

0.50

AIRBAG DEPLOYMENT SIGNAL

N/A

R43

BU/BN

0.50

DRIVER SQUIB 1 LINE 2

N/A

R45

GN/OG

0.50

DRIVER SQUIB 1 LINE 1

N/A

R63

DB/WH

0.50

DRIVER SQUIB 2 LINE 1

N/A

R61

GN/VT

0.50

DRIVER SQUIB 2 LINE 2

N/A

R11

OG/DB

0.50

DRIVER KNEE BLOCKER SQUIB LINE 1

N/A

BU/YE

0.50

DRIVER KNEE BLOCKER SQUIB LINE 2

N/A

F201

PK/OG

0.50

FUSED IGNITION RUN/START CONTROL OUTPUT

N/A

D11

YE/DB

0.50

CAN C (+)

N/A

R42

DG/BN

0.50

PASSENGER SQUIB 1 LINE 2

N/A

R44

GY/OG

0.50

PASSENGER SQUIB 1 LINE 1

N/A

R64

VT/WH

0.50

PASSENGER SQUIB 2 LINE 1

N/A

R62

BU/VT

0.50

PASSENGER SQUIB 2 LINE 2

N/A

R66

GY/DG

0.50

PASSENGER SQUIB 3 LINE 2

N/A

R68

BU/YE

0.50

PASSENGER SQUIB 3 LINE 1

N/A

F100

PK/VT

0.50

FUSED IGNITION RUN CONTROL OUTPUT

N/A

D12

0.50

CAN C (-)

N/A

R168

GN/WH

0.50

AIRBAG OFF LAMP PASSENGER

N/A

R167

0.50

AIRBAG ON LAMP PASSENGER

N/A

R79

BU/VT

0.50

LEFT FRONT IMPACT SENSOR SIGNAL

N/A

R81

BU/WH

0.50

LEFT FRONT IMPACT SENSOR GROUND

N/A

R82

WH/BU

0.50

RIGHT FRONT IMPACT SENSOR GROUND

N/A

R80

VT/BU

0.50

RIGHT FRONT IMPACT SENSOR SIGNAL

N/A

Z933

0.50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
