Module-Occupant Restraint Controller C2 (Standard) Connector End View (D3834B)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: 2098966-1_2098972-1_2098971-1

Part Description: Not Available

Connector No: D3834B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

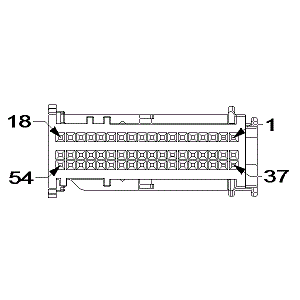

Fig 1: Module-Occupant Restraint Controller C2 Connector End View (Standard)
GCWD1011593Courtesy of CHRYSLER

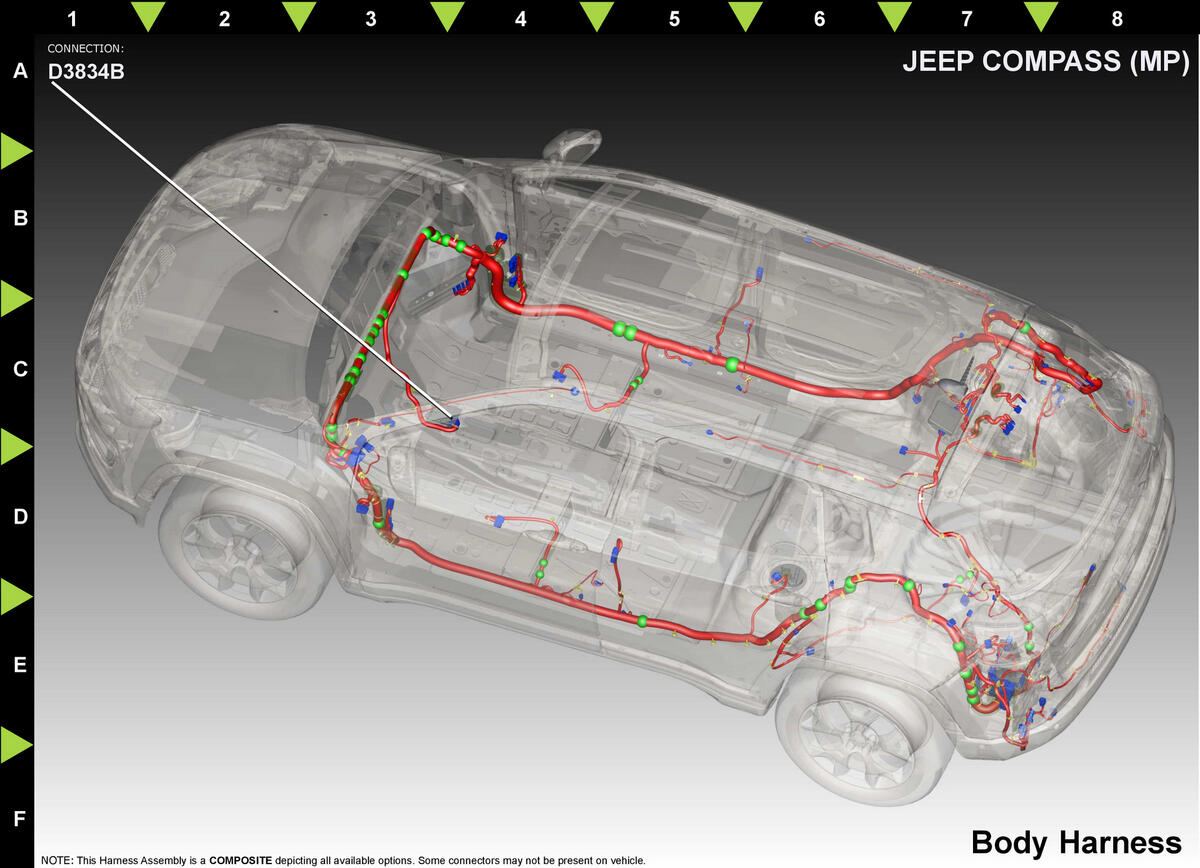

Fig 2: Module-Occupant Restraint Controller C2 Component Location (Standard)
GCWD1288245Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R7 GN/GY 0.50 LEFT SEAT THORAX SQUIB 1 LINE 1 N/A
2 R5 BU/VT 0.50 LEFT SEAT THORAX SQUIB 1 LINE 2 N/A
3 R6 VT/BU 0.50 RIGHT SEAT THORAX SQUIB 1 LINE 2 N/A
4 R8 GY/GN 0.50 RIGHT SEAT THORAX SQUIB 1 LINE 1 N/A
5 R278 OG/DG 0.50 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
6 R277 DB/GN 0.50 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
7 R279 DB/OG 0.50 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
8 R280 OG/VT 0.50 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
9 R508 GY/DB 0.75 DRIVER SEAT BELT ANCHOR TENSIONER LINE 1 N/A
10 R507 DG/BU 0.75 DRIVER SEAT BELT ANCHOR TENSIONER LINE 2 N/A
11 R509 DG/OG 0.75 PASSENGER SEAT BELT ANCHOR TENSIONER LINE 2 N/A
12 R510 OG/BG 0.75 PASSENGER SEAT BELT ANCHOR TENSIONER LINE 1 N/A
13 R77 VT/BG 0.50 DRIVER LOAD LIMITER LINE 1 N/A
14 R75 BU/VT 0.50 DRIVER LOAD LIMITER LINE 2 N/A
15 R76 VT/BU 0.50 PASSENGER LOAD LIMITER LINE 2 N/A
16 R78 BG/BU 0.50 PASSENGER LOAD LIMITER LINE 1 N/A
19 R13 GN/BG 0.50 LEFT SIDE IMPACT SENSOR 1 SIGNAL N/A
20 R15 GN/BN 0.50 LEFT SIDE IMPACT SENSOR 1 GROUND N/A
21 R16 BN/GN 0.50 RIGHT SIDE IMPACT SENSOR 1 GROUND N/A
22 R14 BG/GN 0.50 RIGHT SIDE IMPACT SENSOR 1 SIGNAL N/A
23 D3 DB 0.50 CAN CH (+) N/A
24 D4 YE 0.50 CAN CH (-) N/A
25 R36 GN/BN 0.50 2R SEAT BELT RETRACTOR PRET (+) RT N/A
26 R38 BU/GY 0.50 2R SEAT BELT RETRACTOR PRET (-) RT N/A
27 R37 GN/GY 0.50 2R SEAT BELT RETRACTOR PRET (-) LT N/A
28 R35 BU/GN 0.50 2R SEAT BELT RETRACTOR PRET (+) LT N/A
31 R4 GY/BU 0.50 RIGHT CURTAIN SQUIB 1 LINE 1 N/A
32 R2 DB/VT 0.50 RIGHT CURTAIN SQUIB 1 LINE 2 N/A
33 R1 GY/WH 0.50 LEFT CURTAIN SQUIB 1 LINE 2 N/A
34 R3 DG/OG 0.50 LEFT CURTAIN SQUIB 1 LINE 1 N/A
37 R263 BU/VT 0.50 DRIVER SEAT POSITION SENSOR VOLTAGE N/A
38 R264 VT/BU 0.50 PASSENGER SEAT POSITION SENSOR VOLTAGE N/A
39 R57 GN/GY 0.50 DRIVER SEAT BELT BUCKLE SWITCH SENSE N/A
40 R58 BU/GY 0.50 PASSENGER SEAT BELT SWITCH SENSE N/A
44 R283 BU/DG 0.50 PASSENGER SEAT OCCUPANT DETECTION SIGNAL N/A
45 R729 GN/BK 0.50 DRIVER SEAT DETECTION RETURN N/A
46 R730 BU/BK 0.50 PASSENGER SEAT DETECTION RETURN N/A
47 R17 GN 0.50 DRIVER SIDE IMPACT SENSOR 2 SIGNAL N/A
48 R19 GN/WH 0.50 DRIVER SIDE IMPACT SENSOR 2 GROUND N/A
49 R20 WH/GN 0.50 PASSENGER SIDE IMPACT SENSOR 2 GROUND N/A
50 R18 BU 0.50 PASSENGER SIDE IMPACT SENSOR 2 SIGNAL N/A
51 R130 DB 0.50 LEFT SIDE IMPACT PRESSURE SENSOR SIGNAL N/A
52 R150 GN/DB 0.50 LEFT SIDE IMPACT PRESSURE SENSOR GROUND N/A
53 R160 BN 0.50 RIGHT SIDE IMPACT PRESSURE SENSOR GROUND N/A
54 R140 BG 0.50 RIGHT SIDE IMPACT PRESSURE SENSOR SIGNAL N/A
(1) Pins not listed are not used for this connector
