Module-Steering Column Control C1 (Standard) Connector End View (D3816A)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 33120610

Part Description: Not Available

Connector No: D3816A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

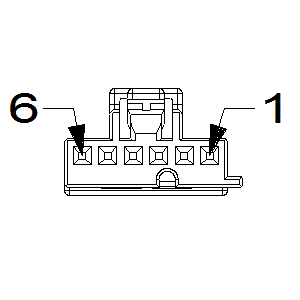

Fig 1: Module-Steering Column Control C1 Connector End View (Standard)

Courtesy of CHRYSLER

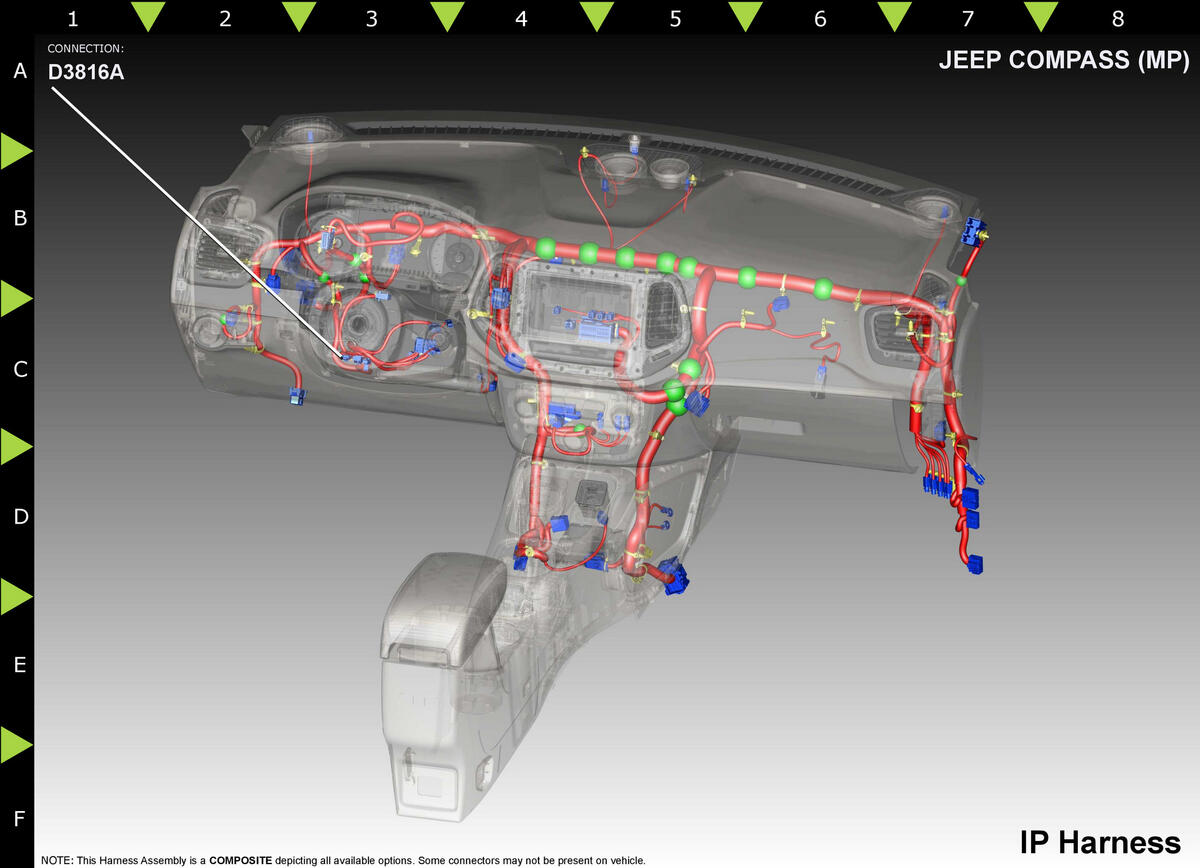

Fig 2: Module-Steering Column Control C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R63

DB/WH

0.50

DRIVER SQUIB 2 LINE 1

N/A

R61

GN/VT

0.50

DRIVER SQUIB 2 LINE 2

N/A

R45

GN/OG

0.50

DRIVER SQUIB 1 LINE 1

N/A

R43

BU/BN

0.50

DRIVER SQUIB 1 LINE 2

N/A

⁽¹⁾	Pins not listed are not used for this connector
