Module-Steering Column Control C6 (Standard) Connector End View (D3816F)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 33401180

Part Description: Not Available

Connector No: D3816F

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

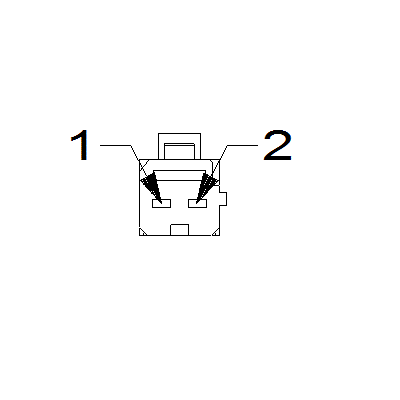

Fig 1: Module-Steering Column Control C6 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Steering Column Control C6 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C91

0.75

HEATED STEERING WHEEL FEED

N/A

C986

0.75

HEATED STEERING WHEEL RETURN

N/A

⁽¹⁾	Pins not listed are not used for this connector
