Down Stream 2.0L Diesel 140CV Auto: Removal

  1. Remove the engine cover. .
  2. Remove the battery tray. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
  3. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .

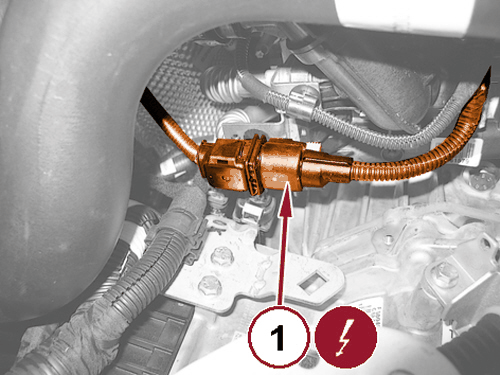

    GC0095772Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the upper oxygen sensor wire harness connector (1).

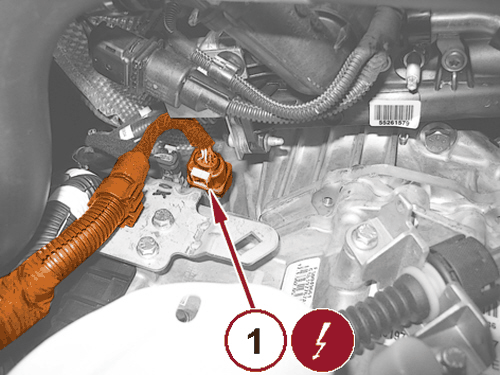

    GC0172962Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the lower oxygen sensor wire harness connector (1).

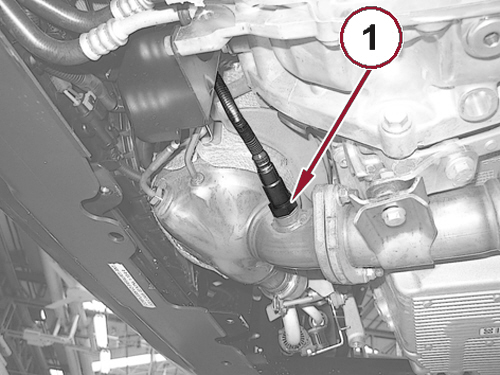

    GC0080481Courtesy of CHRYSLER GROUP, LLC
  6. Disengage the wiring from the retaining clips and remove the lower oxygen sensor (1).
