Module-Automatic Sway Bar (Standard) Connector End View (D3924A)

Harness-Family: Chassis_RT

Color: BLACK

Gender: FEMALE

Part Number: 872-585-531

Part Description: Not Available

Connector No: D3924A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Automatic Sway Bar Connector End View (Standard)

Courtesy of CHRYSLER

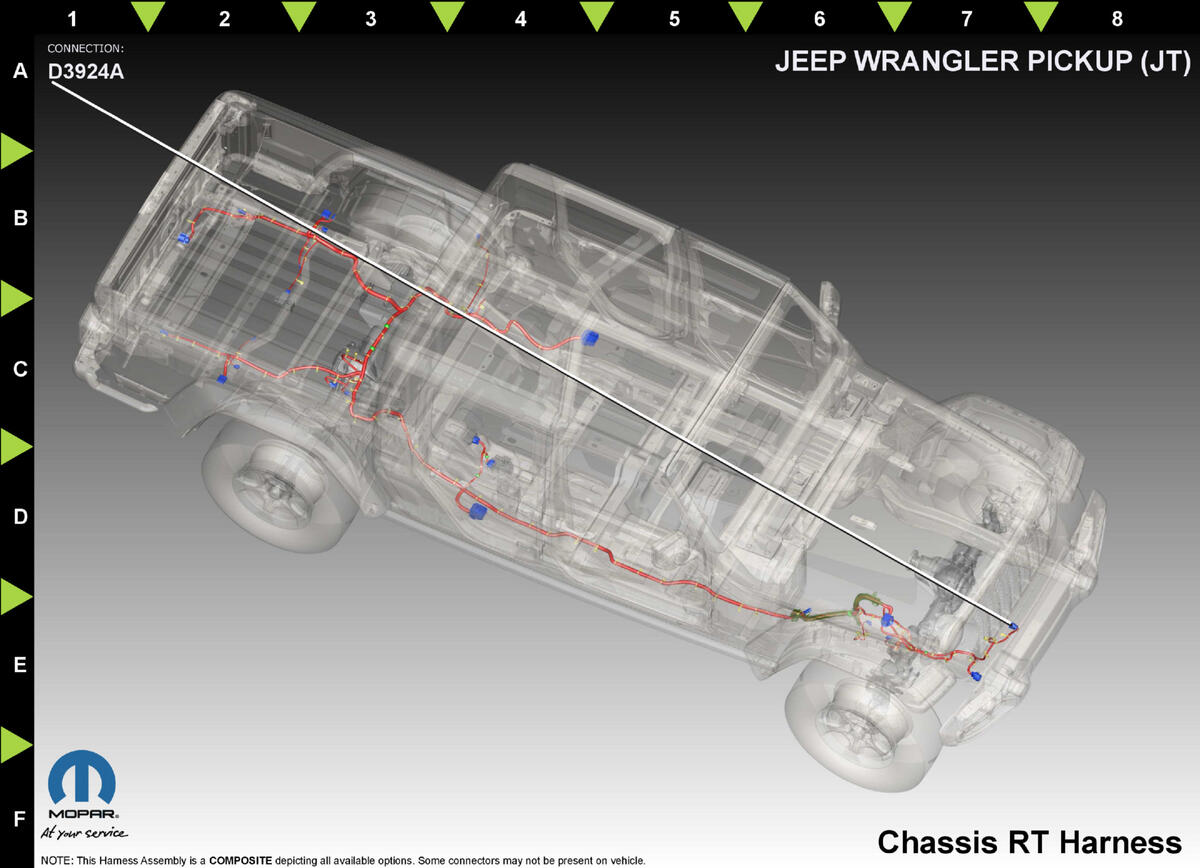

Fig 2: Module-Automatic Sway Bar Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z906

1.0

GROUND

N/A

D304

0.50

CAN C (-)

N/A

F941

PK/WH

0.35

IGNITION RUN/START CONTROL OUTPUT

N/A

Z906

1.0

GROUND

N/A

D303

YE/WH

0.50

CAN C (+)

N/A

A959

1.5

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
