Module-Fuel Pump Control (Standard) Connector End View (D2792A)

Harness-Family: Chassis_RT

Color: GRAY

Gender: FEMALE

Part Number: 13669205_15430896

Part Description: Not Available

Connector No: D2792A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

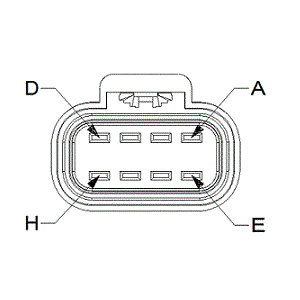

Fig 1: Module-Fuel Pump Control Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Fuel Pump Control Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

DB/OG

2.0

FUEL PUMP CONTROL OUTPUT

N/A

N11

DB/BG

0.35

FPCM PWM CONTROL

N/A

N13

DB/OG

2.0

FUEL PUMP PWM CONTROL

N/A

Z906

2.0

GROUND

N/A

N12

DB/GN

0.35

FPCM PWM FEEDBACK

N/A

Z31

0.50

SHIELD GROUND

N/A

N14

VT/BU

2.0

FUEL PUMP RETURN

N/A

⁽¹⁾	Pins not listed are not used for this connector
