Module-Inverter C1 (Standard) Connector End View (D3920A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 1452203-1

Part Description: Not Available

Connector No: D3920A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

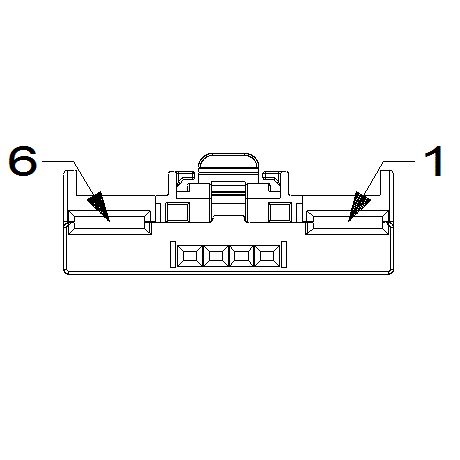

Fig 1: Module-Inverter C1 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Inverter C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A401

RD/GN

5.0

FUSED B(+)

220VAC INVERTER

P825

GN/BU

0.35

220 VOLT AC LINE 3

220VAC INVERTER

P805

GN/DB

0.35

115 VOLT AC LINE 3

110VAC INVERTER

F982

PK/YE

0.50

FUSED IGNITION SWITCH OUTPUT (RUN-ACC)

N/A

D403

OG/DB

0.35

LIN BUS CBC 3

N/A

P812

BG/BU

0.35

INVERTER ENABLE 2

N/A

Z910

5.0

GROUND

220VAC INVERTER

⁽¹⁾	Pins not listed are not used for this connector
