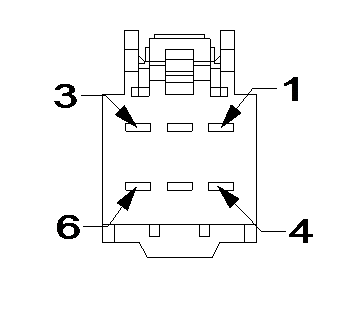

Module-Inverter C2 (Standard) Connector End View (D3920B)

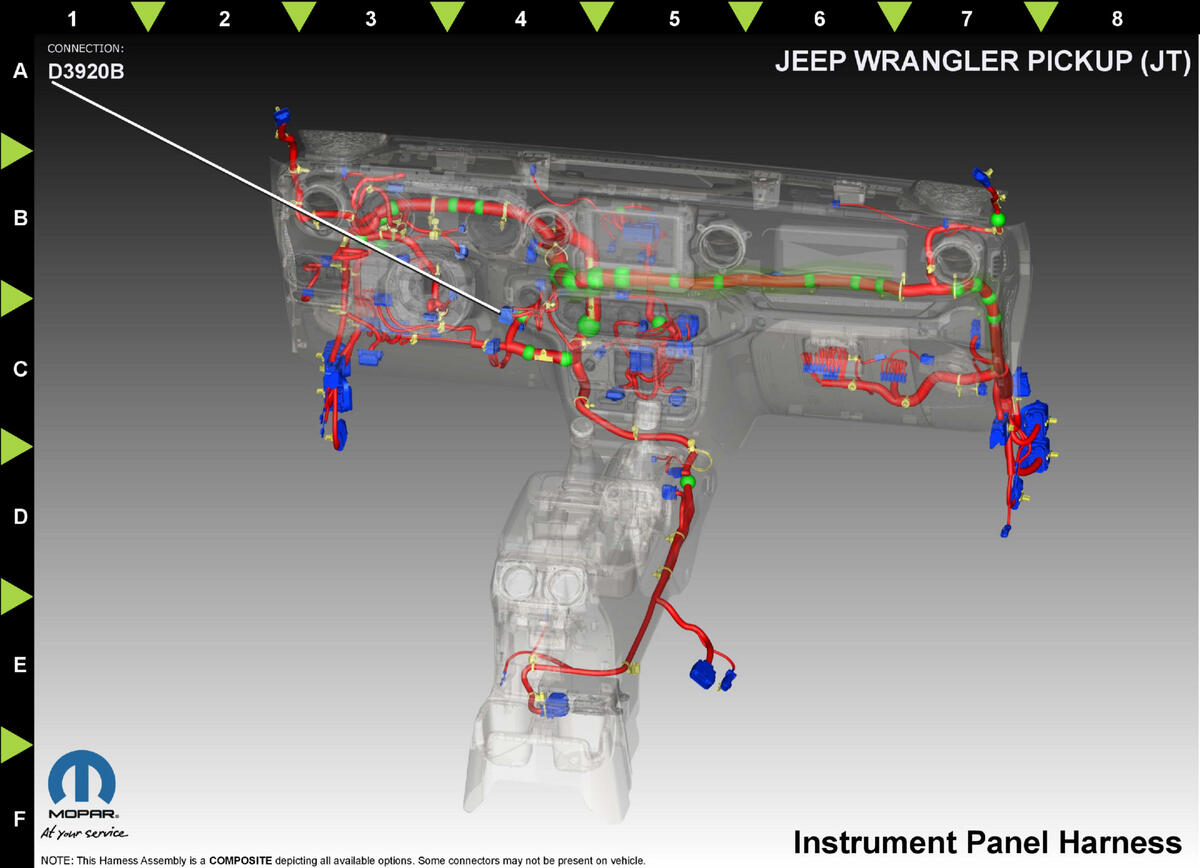

Harness-Family: IP
Color: BLACK
Gender: FEMALE
Part Number: 6098-4607
Part Description: Not Available
Connector No: D3920B
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | P810 | BG | 0.80 | AC VOLTAGE LINE 3 | N/A | ||
| 3 | P824 | GN | 1.0 | 220 VOLT AC LINE 1 | 220VAC INVERTER | ||
| 3 | P801 | GN | 1.0 | 115 VOLT AC LINE 1 | 110VAC INVERTER | ||
| 4 | P811 | BG/OG | 0.80 | AC VOLTAGE LINE 4 | N/A | ||
| 6 | P828 | GN/OG | 1.0 | 220 VOLT AC LINE 2 | 220VAC INVERTER | ||
| 6 | P802 | GN/OG | 1.0 | 115 VOLT AC LINE 2 | 110VAC INVERTER | ||
|
|||||||
