Module-Powertrain Control C1 (Standard) Connector End View (D3821A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 2035037-1_1924940-1

Part Description: Not Available

Connector No: D3821A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

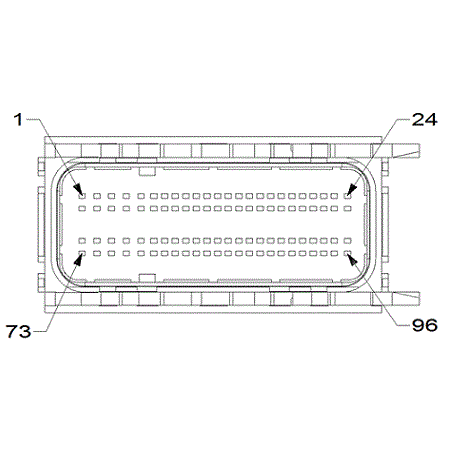

Fig 1: Module-Powertrain Control C1 Connector End View (Standard)
GCWD1012424Courtesy of CHRYSLER

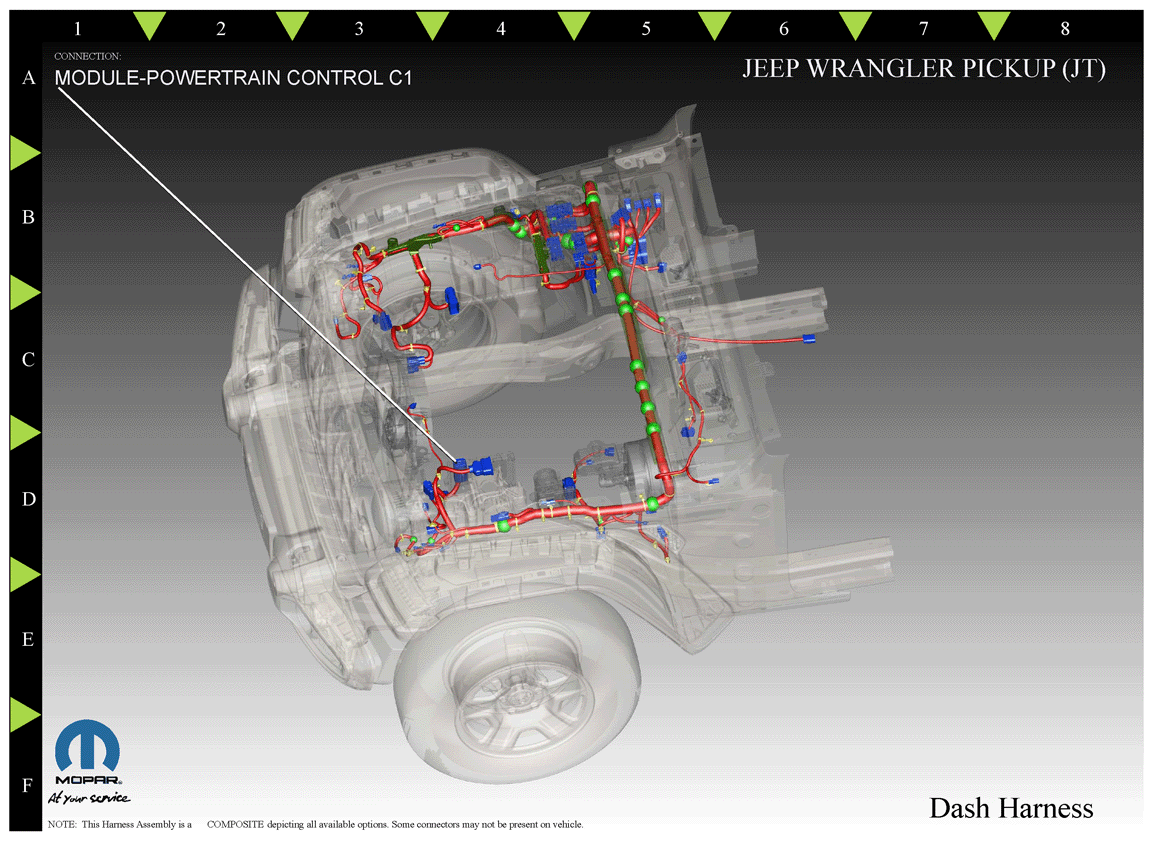

Fig 2: Module-Powertrain Control C1 Component Location (Standard)
GCWD1284724Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
17 T17 YE/VT 0.35 CLUTCH INTERLOCK START CONTROL N/A
21 K804 BN/GN 0.35 STOP START NEUTRAL SW SIG N/A
22 K181 BN/YE 0.35 FUEL PRESSURE SIGNAL N/A
23 F942 PK/VT 0.50 FUSED IGNITION SWITCH OUTPUT (RUN-START) N/A
33 D28 YE 0.35 CAN C (-) N/A
44 C18 BU/BN 0.50 A/C PRESSURE SIGNAL N/A
46 K806 DB/BN 0.50 HOOD AJAR SWITCH 2 N/A
48 K859 BN/DB 0.50 5 VOLT SUPPLY N/A
52 Z909 BK/GN 1.0 GROUND N/A
53 Z909 BK/GN 1.0 GROUND N/A
54 K917 BN/BG 0.35 SENSOR GROUND N/A
57 D27 BG/WH 0.35 CAN C (+) N/A
61 N12 DB/GN 0.35 FPCM PWM FEEDBACK N/A
66 T119 YE 0.35 CLUTCH POSITION SIGNAL N/A
67 K400 BN/VT 0.75 APP SENSOR GROUND 2 LHD
68 K167 BN/YE 0.75 APP SENSOR GROUND 1 LHD
69 K854 VT/BN 0.35 5 VOLT SUPPLY N/A
70 K108 VT/GY 0.35 ESIM SIGNAL N/A
71 K8 VT/BG 0.35 STARTER RELAY CONTROL N/A
72 Z909 BK/GN 1.0 GROUND N/A
73 N9 DB 0.50 FUEL PUMP RELAY CONTROL N/A
74 F342 BN/WH 1.0 FUSED ASD RELAY OUTPUT N/A
75 F342 BN/WH 1.0 FUSED ASD RELAY OUTPUT N/A
76 F342 BN/WH 1.0 FUSED ASD RELAY OUTPUT N/A
77 T110 DG/YE 0.50 VACUUM PUMP RELAY CONTROL N/A
79 C13 BU/OG 0.35 A/C CLUTCH CONTROL N/A
80 K51 BN/WH 0.75 ASD RELAY CONTROL N/A
82 K173 BN/VT 0.50 RADIATOR FAN CONTROL SIGNAL N/A
83 N11 DB/BG 0.35 FPCM PWM CONTROL N/A
86 T122 DG 0.35 GEAR POSITION SENSOR SIGNAL N/A
88 N7 DB/OG 0.35 FUEL TANK PRESSURE SIGNAL N/A
91 K29 WH/BN 0.75 APP SIGNAL 2 LHD
92 K23 BN/WH 0.75 APP SIGNAL 1 LHD
93 K852 GY/DB 0.75 5 VOLT SUPPLY LHD
94 K52 DB/WH 0.50 EVAP PURGE CONTROL N/A
96 A106 BU/RD 1.0 FUSED B(+) N/A
(1) Pins not listed are not used for this connector
