Module-Powertrain Control C2 (Standard) Connector End View (D3821B)

Harness-Family: Powertrain

Color: TAN

Gender: FEMALE

Part Number: 2035037-1_1924941-1

Part Description: Not Available

Connector No: D3821B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

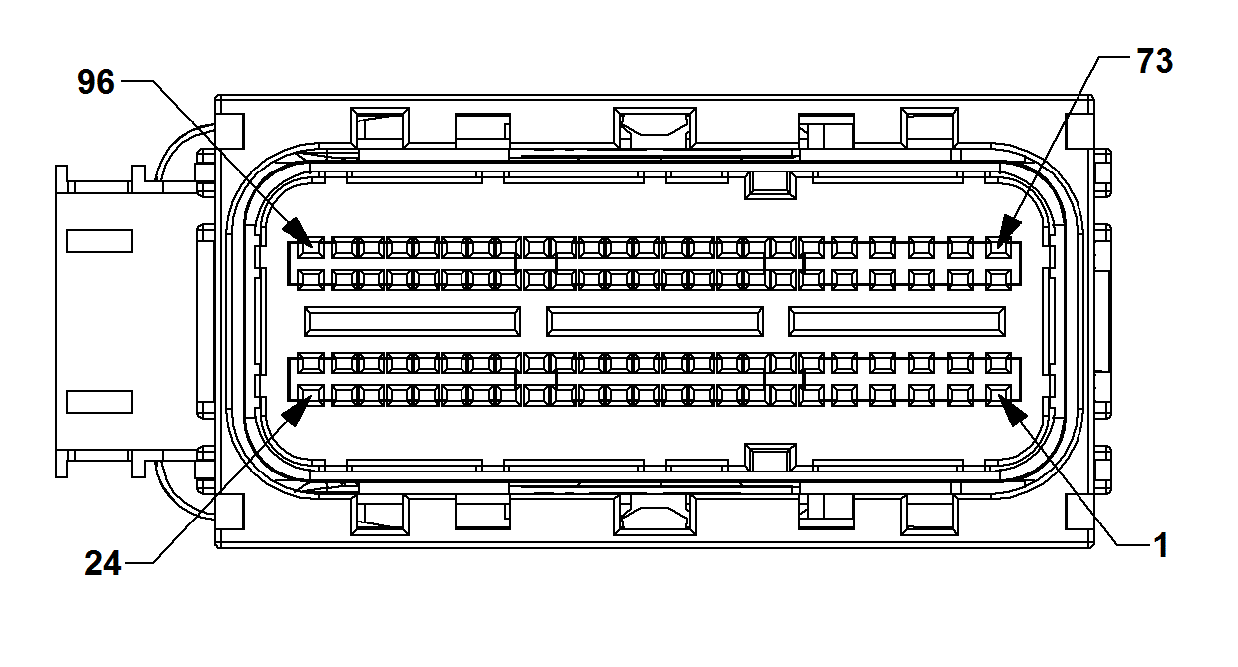

Fig 1: Module-Powertrain Control C2 Connector End View (Standard)
GCWD1013195Courtesy of CHRYSLER

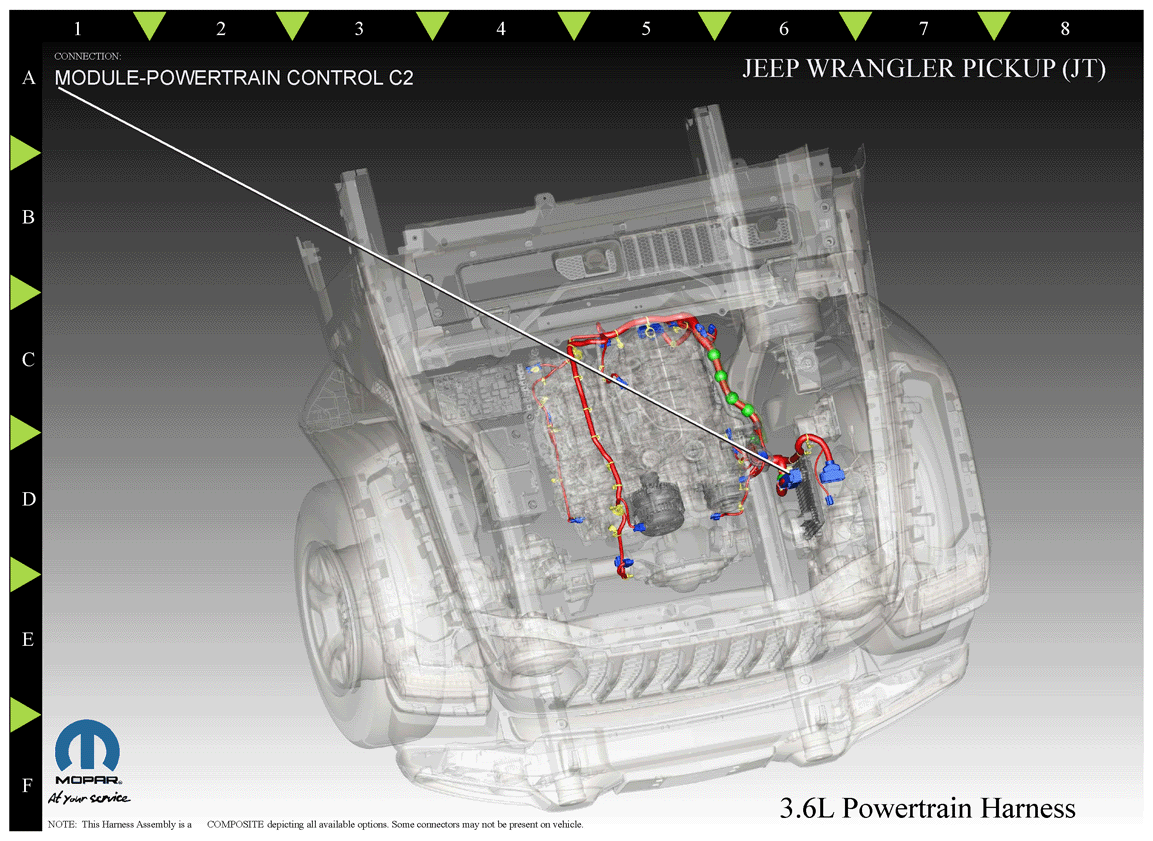

Fig 2: Module-Powertrain Control C2 Component Location (Standard)
GCWD1284522Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K534 GY/YE 0.75 VVL SOLENOID 2/2 CONTROL N/A
3 K932 DB/BU 0.50 EGR TEMP SENSOR SIGNAL N/A
4 G60 VT/YE 0.75 EOP SIGNAL 2 N/A
6 K532 VT/GY 0.35 VVL SOLENOID 1/2 CONTROL N/A
8 K11 BN/YE 0.75 INJECTOR 1 CONTROL N/A
9 K12 BN/DB 0.75 INJECTOR 2 CONTROL N/A
10 K13 BN/BU 0.75 INJECTOR 3 CONTROL N/A
11 K14 BN/BG 0.75 INJECTOR 4 CONTROL N/A
13 K242 BN/WH 0.35 KS 2 SIGNAL N/A
14 K42 DB/YE 0.35 KS 1 SIGNAL N/A
22 K276 DB/WH 0.35 VVT EXHAUST CONTROL 1/2 N/A
23 K76 BN/WH 0.35 VVT INTAKE CONTROL 1/1 N/A
25 K533 GY 0.75 VVL SOLENOID 2/1 CONTROL N/A
26 K333 DB/BU 0.75 1ST GEAR LOCK-OUT CONTROL MANUAL TRANS
27 K33 DB/GN 0.75 2ND GEAR LOCK-OUT CONTROL MANUAL TRANS
29 T762 DG/YE 0.75 PCR CONTROL RELAY CONTROL N/A
31 K531 VT 0.35 VVL SOLENOID 1/1 CONTROL N/A
32 K20 BN/GY 0.75 GEN FIELD CONTROL N/A
33 K124 DB/GY 0.50 ETC MOTOR (+) N/A
34 K126 DB/GN 0.50 ETC MOTOR (-) N/A
35 A804 RD/VT 0.75 GEN SENSE N/A
37 K924 WH/BN 0.35 KS 2 RETURN N/A
38 K942 BN/GN 0.35 KS 1 RETURN N/A
43 G224 VT/YE 0.35 EOT SIGNAL N/A
44 K21 DB/GN 0.75 IAT SIGNAL N/A
45 K1 VT/BN 0.50 MAP SIGNAL N/A
49 K18 DB/OG 1.0 COIL CONTROL 3 N/A
50 K17 DB/BG 1.0 COIL CONTROL 2 N/A
51 K19 DB/DG 1.0 COIL CONTROL 1 N/A
55 K682 DB/WH 0.50 EGR CONTROL 1 N/A
56 K684 DB/YE 0.50 EGR CONTROL 2 N/A
57 K683 DB/GY 0.50 EGR SIGNAL N/A
59 T127 YE/GN 0.50 GEAR POSITION SENSOR SIGNAL 2 MANUAL TRANS
61 K445 DB/DG 0.50 CMP SENSOR SIGNAL 2/2 N/A
62 K441 DB/BN 0.35 CMP SENSOR SIGNAL 1/2 N/A
63 K444 DB/BG 0.50 CMP SENSOR SIGNAL 2/1 N/A
65 K922 BN/DB 0.50 TP SENSOR RETURN N/A
66 K900 DB/DG 0.35 SENSOR GROUND N/A
67 F855 PK/YE 0.35 5 VOLT SUPPLY N/A
73 K15 DB/GY 1.0 COIL CONTROL 4 N/A
74 K16 DB/YE 1.0 COIL CONTROL 5 N/A
75 K10 DB/OG 1.0 COIL CONTROL 6 N/A
79 K38 BN/OG 0.75 INJECTOR 5 CONTROL N/A
80 K58 BN/VT 0.75 INJECTOR 6 CONTROL N/A
83 T753 DG/YE 0.50 IGNITION CRANK SENSE N/A
85 K44 DB/GY 0.35 CMP SENSOR SIGNAL 1/1 N/A
86 K24 BN/BU 0.50 CKP SIGNAL N/A
87 F856 YE/PK 0.35 5 VOLT SUPPLY N/A
88 K925 DB/GY 0.50 CKP GROUND N/A
89 K22 BN/OG 0.50 TP 1 SIGNAL N/A
90 K122 BN/DG 0.50 TP 2 SIGNAL N/A
93 G62 VT/YE 0.35 OIL PRESSURE SOL CONTROL N/A
94 K78 BN 0.35 VVT INTAKE CONTROL 2/1 N/A
95 K277 DB 0.35 VVT EXHAUST CONTROL 2/2 N/A
(1) Pins not listed are not used for this connector
